Heavy-Duty Paving Pedestal Systems

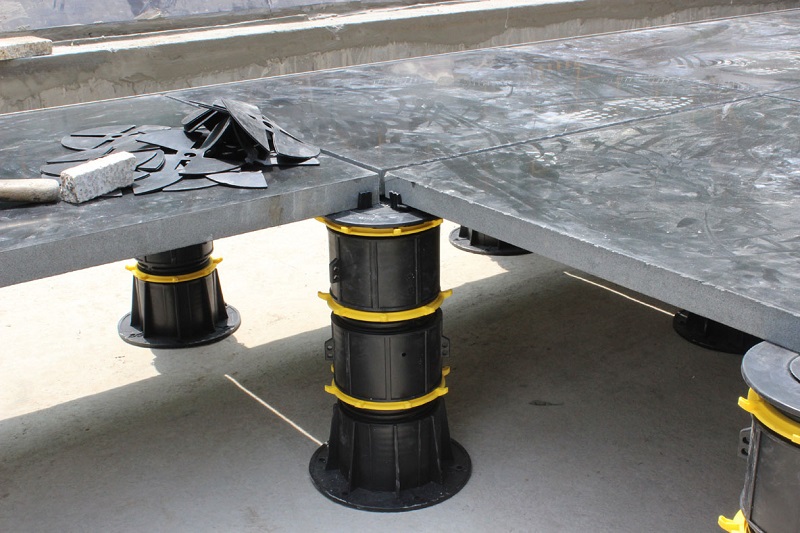

Manufactured in-house to the rigorous Taurus Quality Standard, our paving pedestal systems provide a versatile and robust foundation for elevating outdoor surfaces such as commercial terraces, public plazas, and rooftop gardens.
Engineered from high-density polymers, these supports offer exceptional load-bearing capacity and weather resistance. They allow for precise millimeter height adjustments, seamlessly eliminating uneven substrates and ensuring a perfectly level, lippage-free finish for heavy porcelain, stone, or concrete pavers.
Ideal for large-scale architectural projects, our systems drastically accelerate installation time, facilitate efficient sub-surface drainage, and conceal unsightly piping—delivering a flawless, long-lasting outdoor infrastructure.
Comprehensive Paving Support Series
Discover our diverse range of directly-manufactured pedestal systems, covering height requirements from ultra-low 5mm up to 1360mm. Built for unparalleled versatility and structural safety.

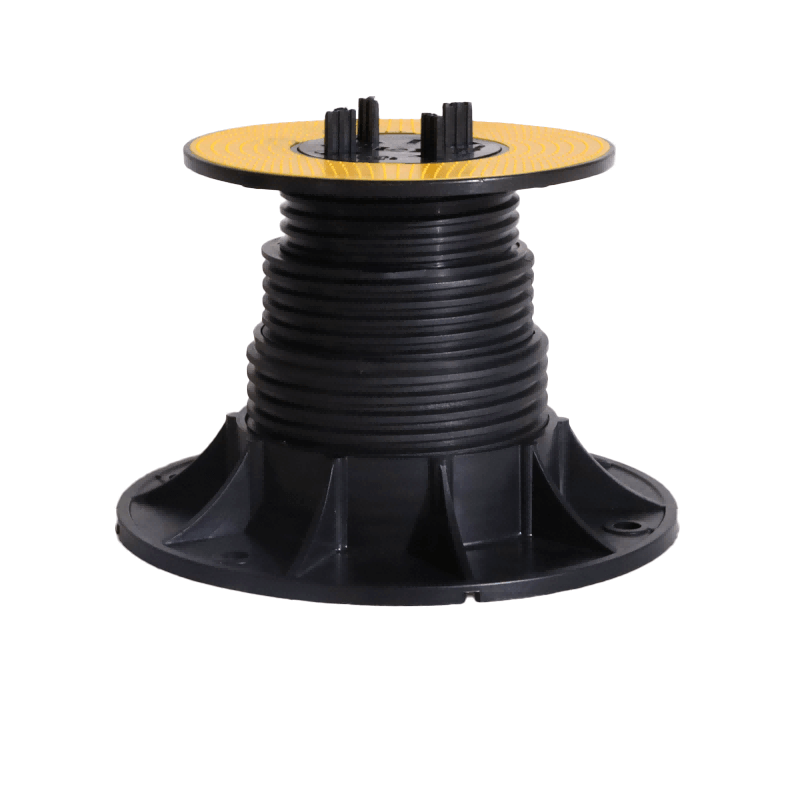

TA-M Series
- Height:46-138mm
- Load:1600 KG

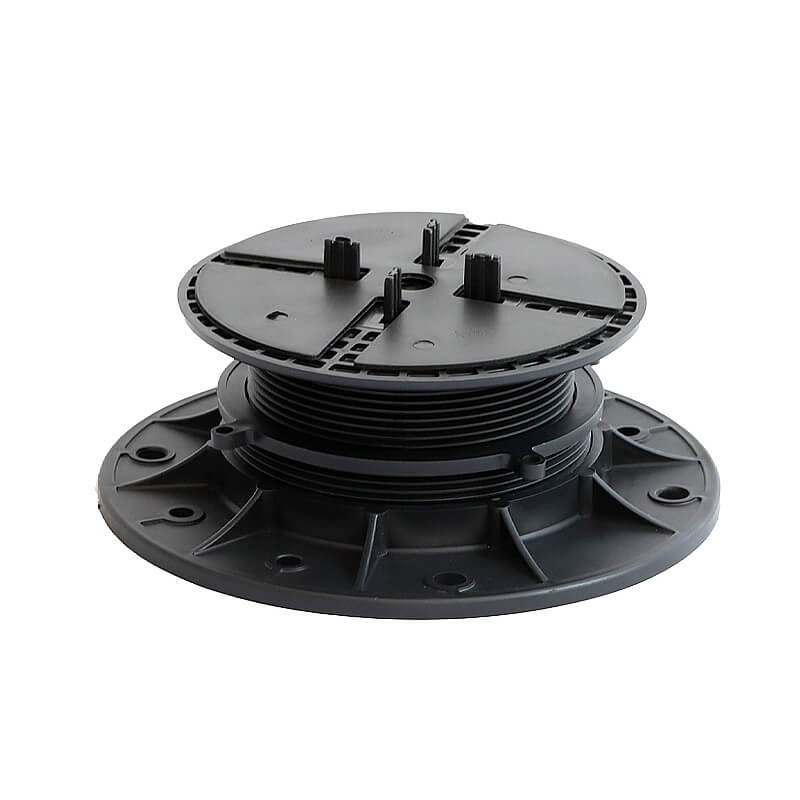

TA-U Series
- Height:19-70mm
- Load:1500 KG

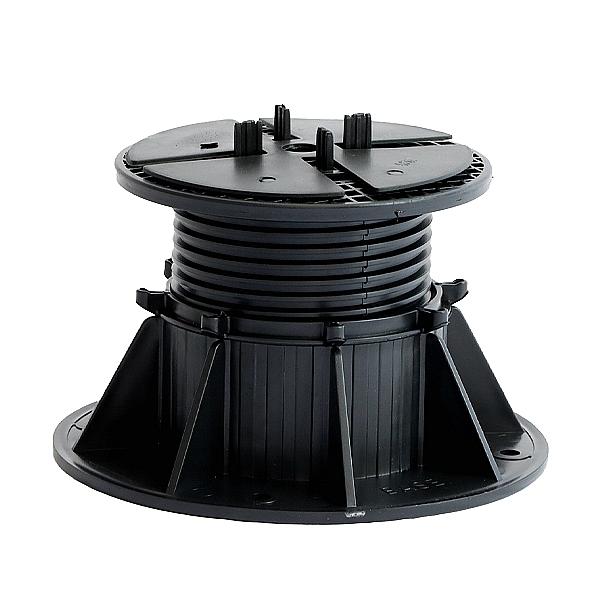

TA-R Series
- Height:75-1360mm
- Load:2500 KG
TA-NR Series
- Height:90-260mm
- Load:2000 KG
TA-V Series
- Height:52-225mm
- Load:900 KG

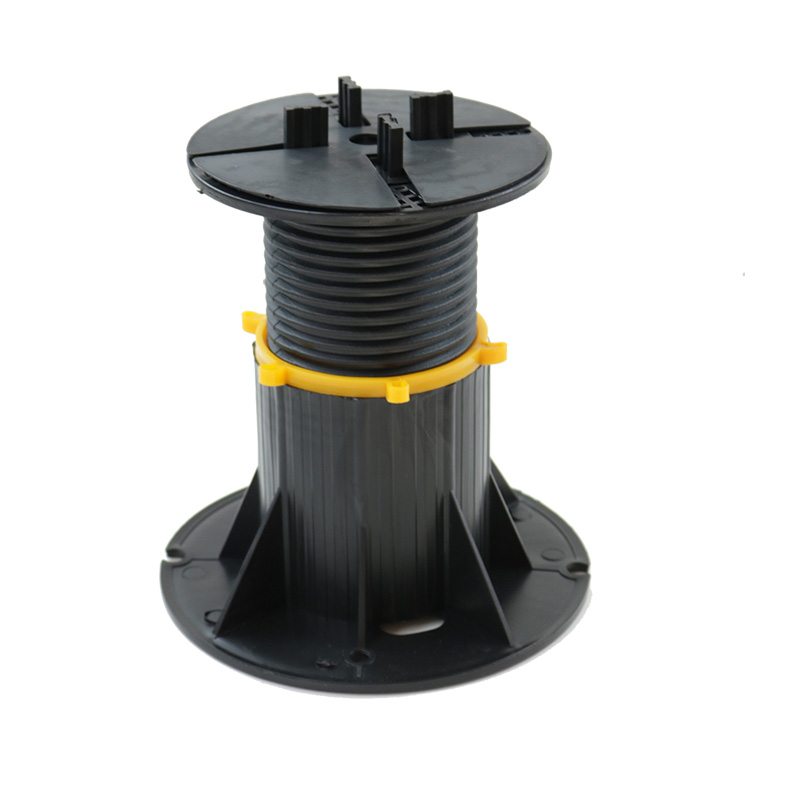

TA-A Series
- Height:46-820mm
- Load:1500 KG

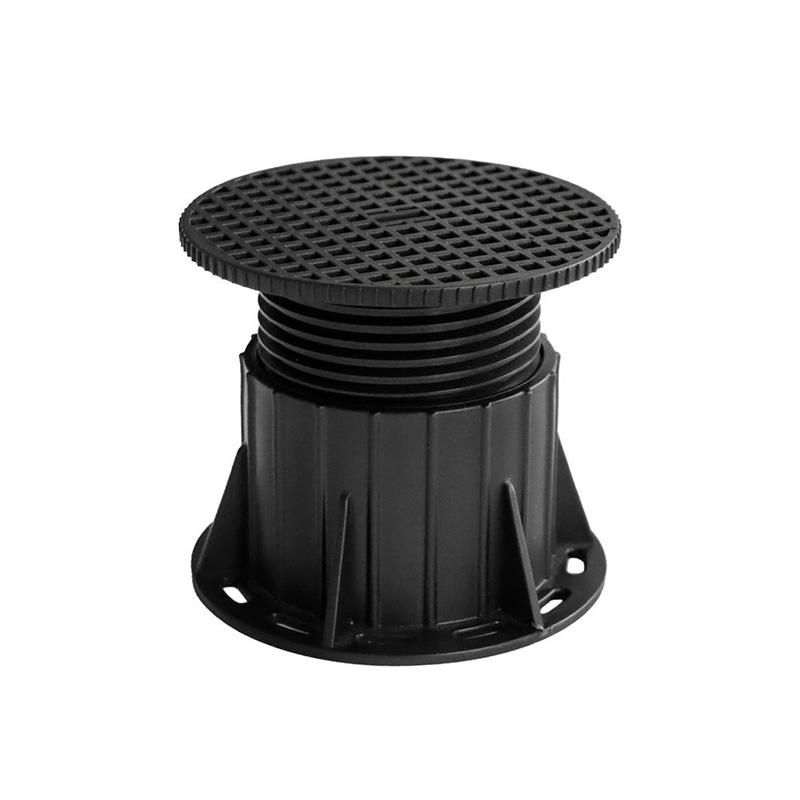

TA-S Series
- Height:20-180mm
- Load:900 KG

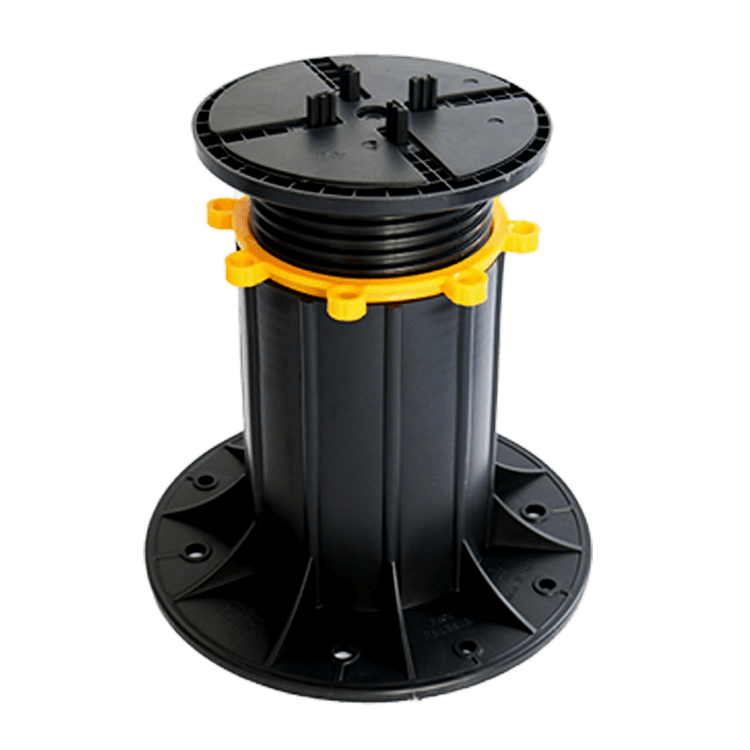

TA-T Series
- Height:180-1360mm
- Load:2500 KG
Fixed Height
- Height:5 / 10mm
- Load:3000 KG
System Components & Accessories
A complete ecosystem of accessories designed to enhance stability, provide precise slope correction, and ensure flawless paving execution.

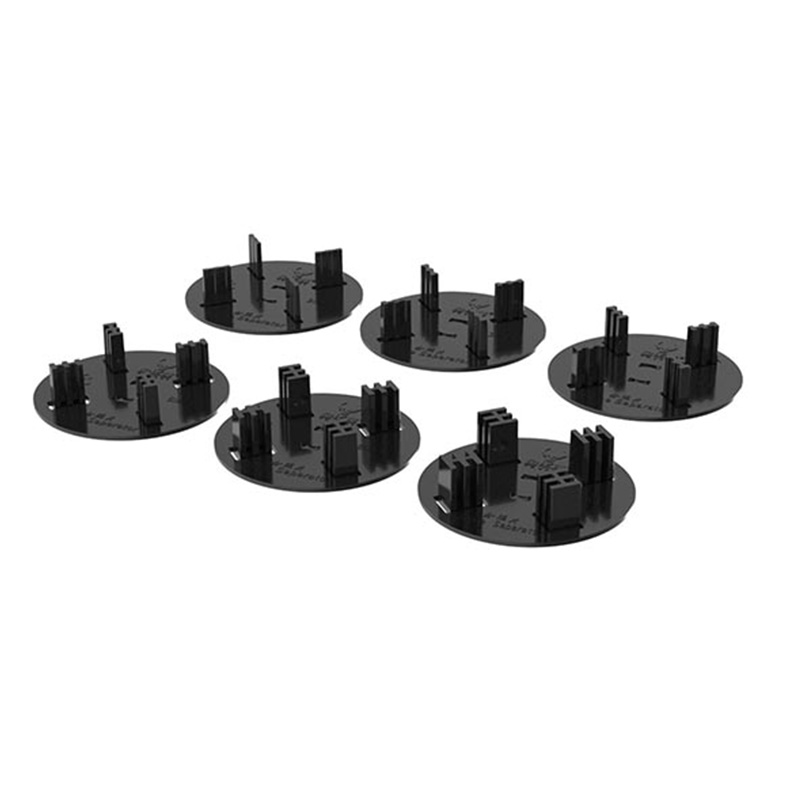

Spacer Tabs
Mainly used to leave seams on the stone to allow quick drainage. Sizes: 2mm to 10mm.
Anti-Slip Shim
1.8mm rubber. Increases friction, adjusts uneven thickness, and reduces noise.

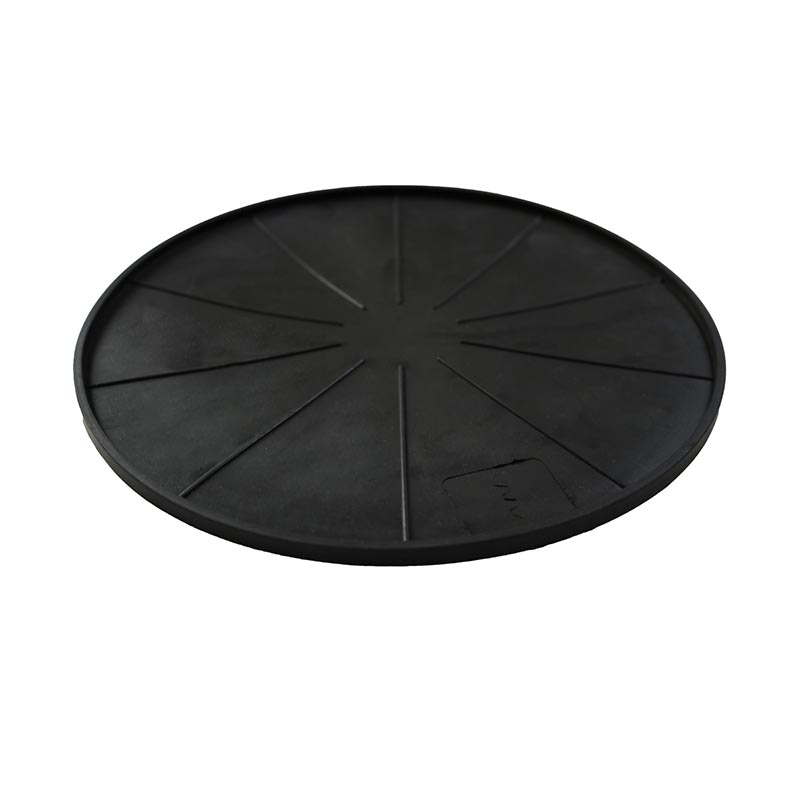

Base Rubber Pad
Placed on the bottom to prevent sliding, reduce vibration, and protect membranes.

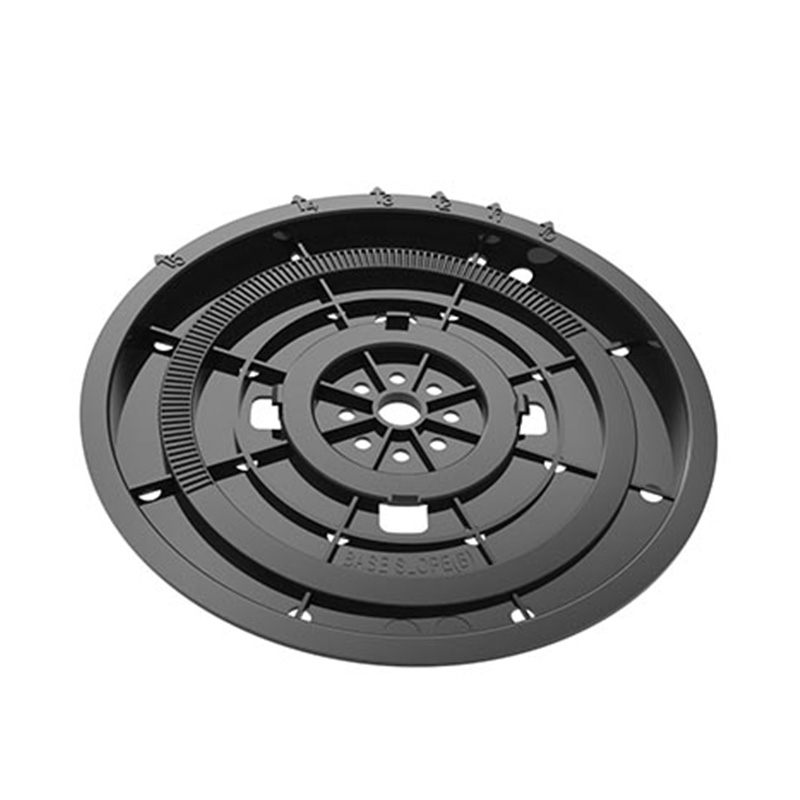

Slope Corrector
Adjustable from 0% to 5% by turning the slope plate to compensate for ground falls.

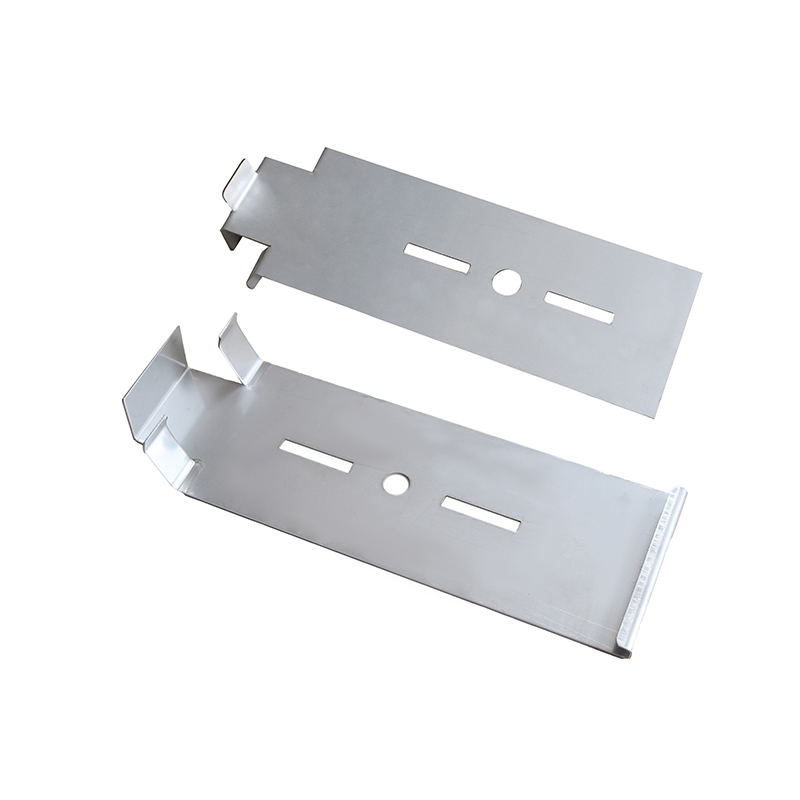

Closure Clips
Stainless steel clips for seamless edge finishing, preventing lateral sliding.

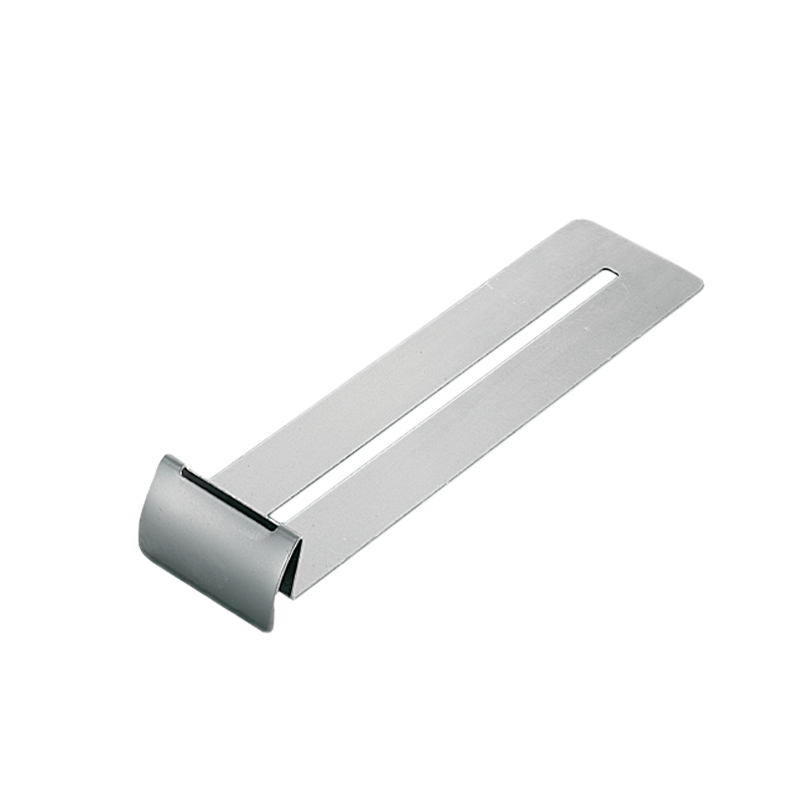

Perimeter Spacer
Engineered to create precise expansion gaps between the raised floor and walls.

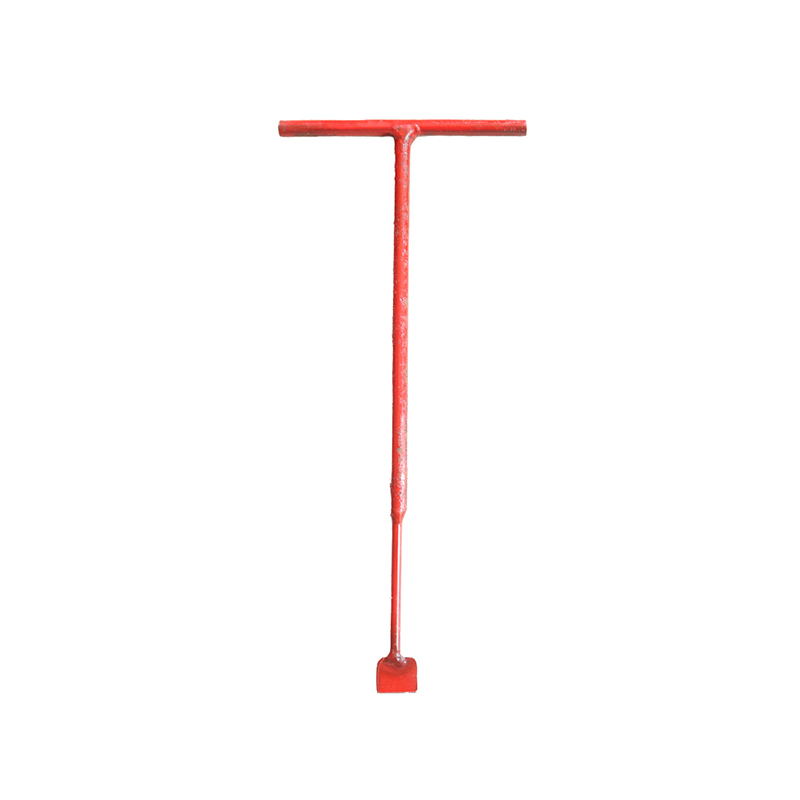

Adjustment Key
A specialized metal tool used for adjusting the height of TA-V self-leveling pedestals.

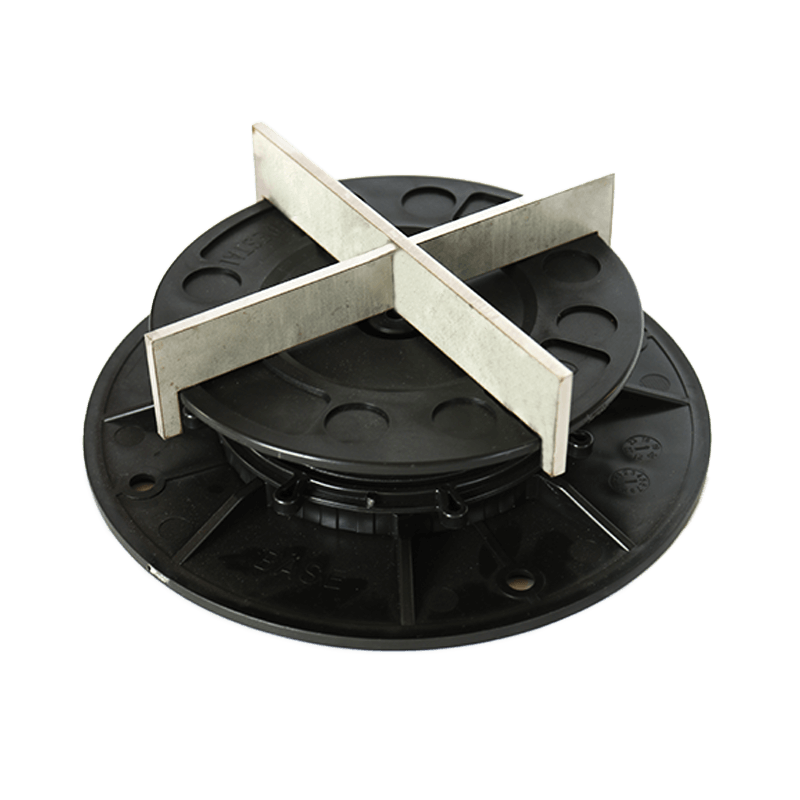

Metal Tile Spacers
Heavy-duty metal spacer tabs with 4mm thickness for extreme load requirements.
Engineered for Global Applications
Taurus paving pedestals provide the ultimate foundation for demanding architectural projects.

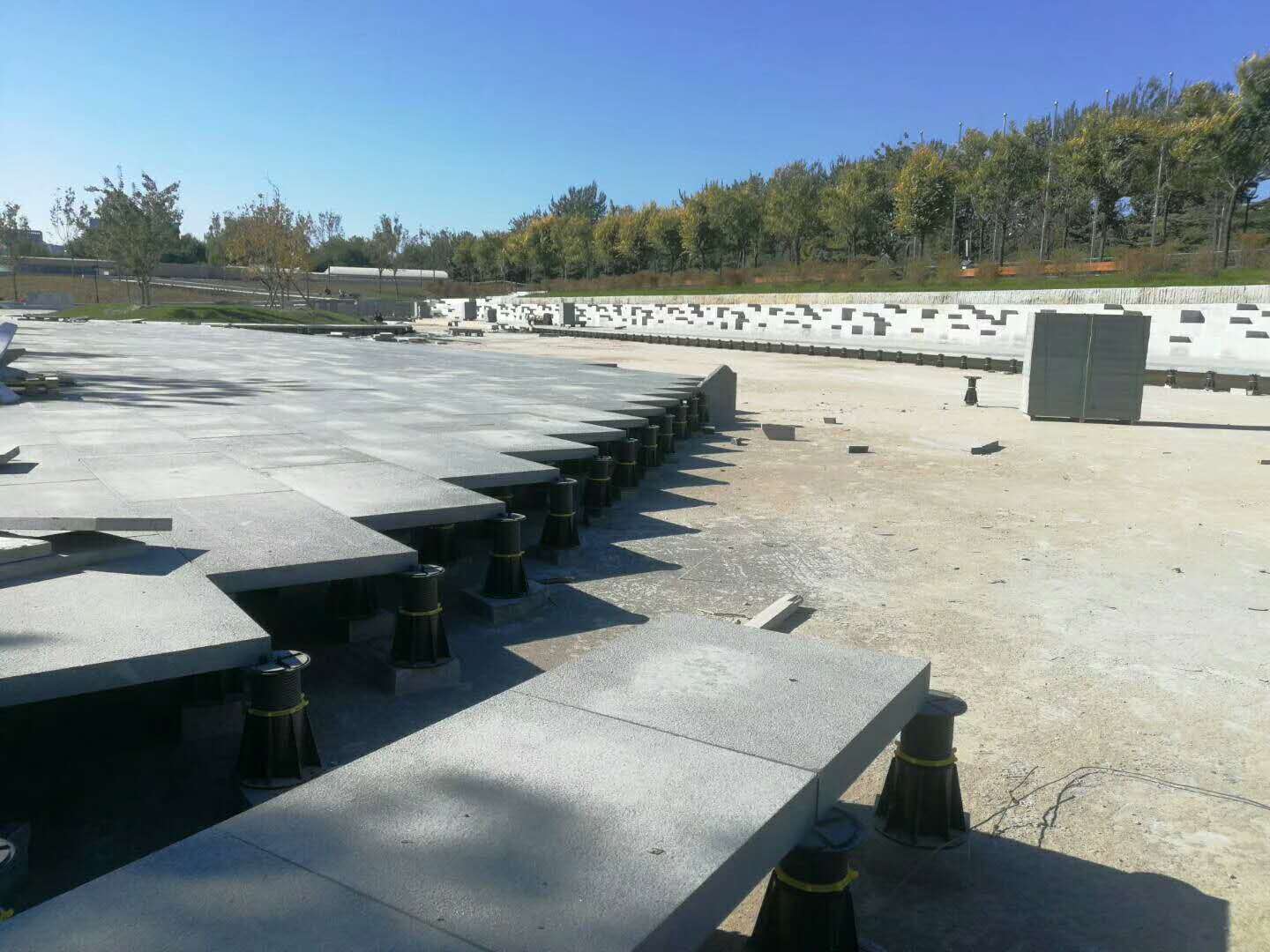

Commercial Plazas
Creates heavy-duty, perfectly level surfaces for high-traffic public squares using thick porcelain or concrete pavers.
Rooftop Terraces
Elevates surfaces without penetrating waterproof membranes, allowing space for insulation and rapid stormwater drainage.

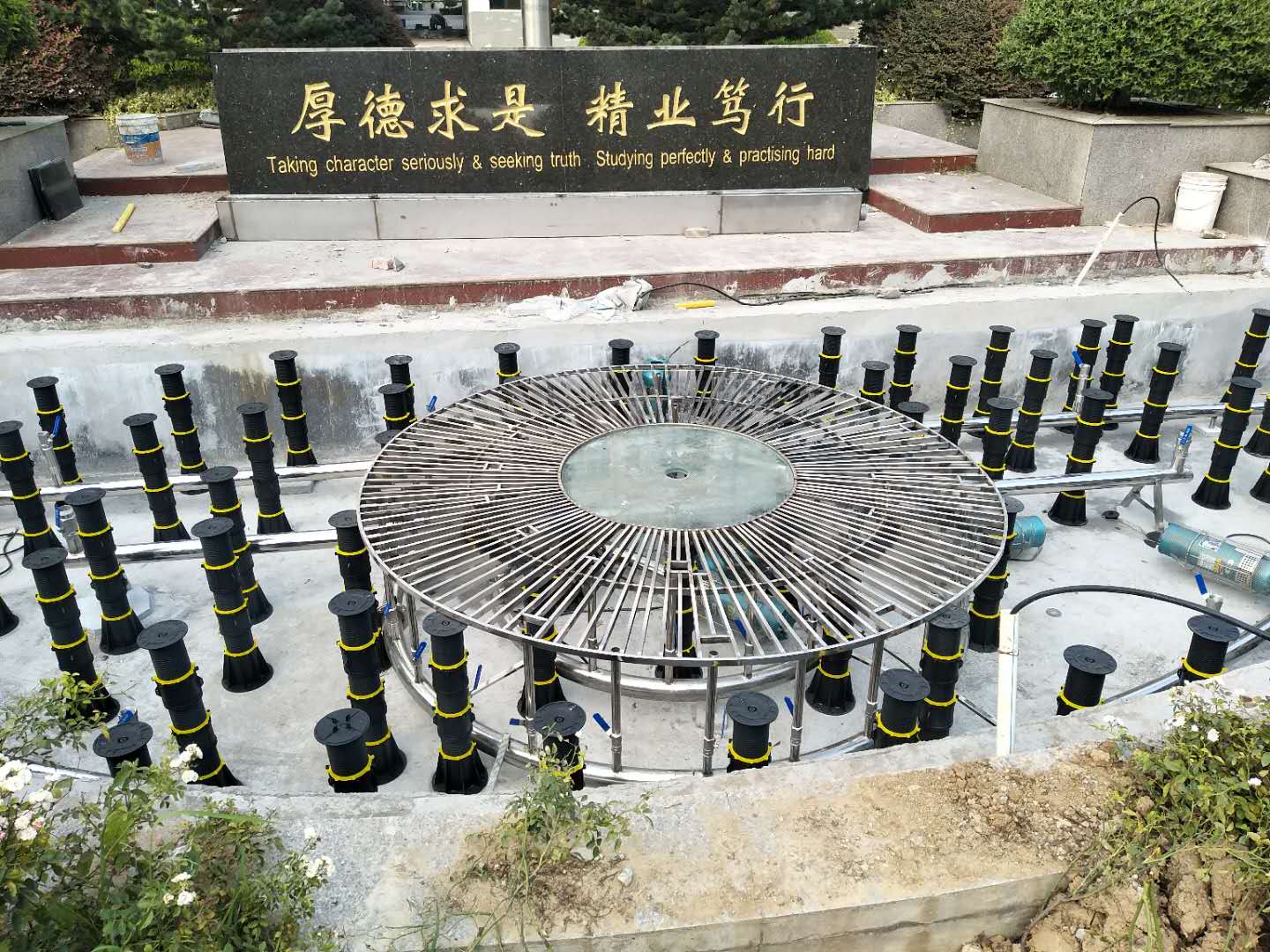

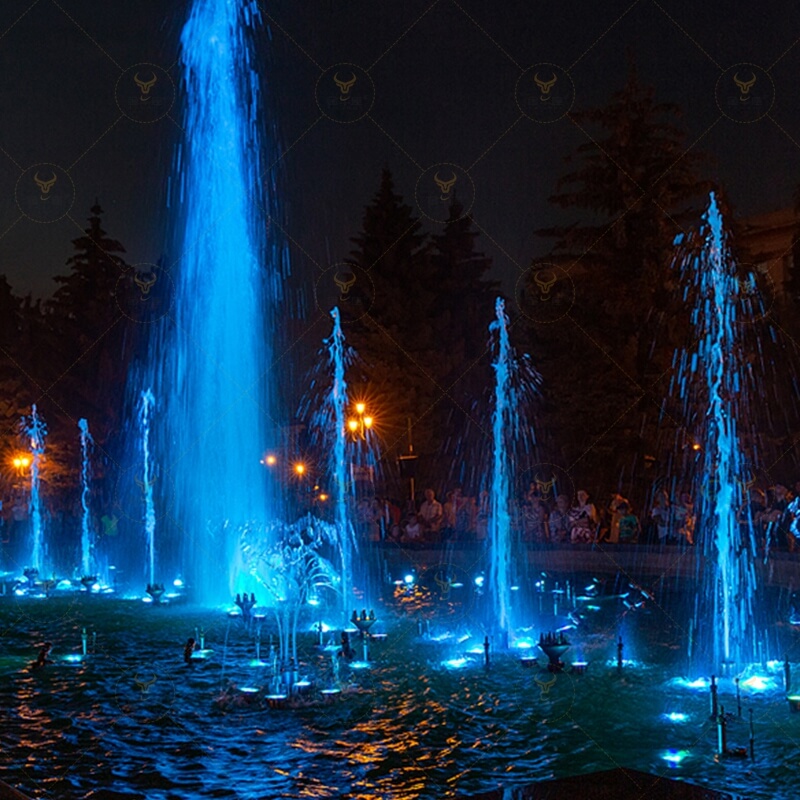

Water Features
Conceals intricate piping and pumps underneath while allowing water to drain seamlessly through the paver gaps.

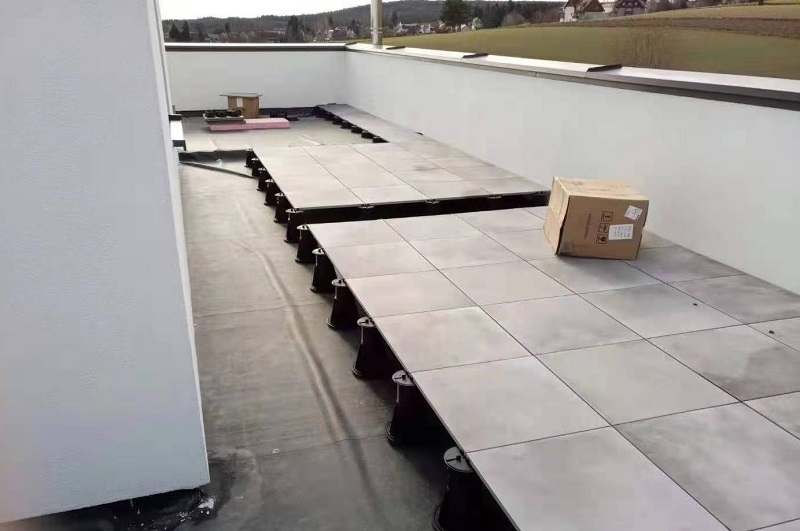

Elevated Balconies
Upgrades residential and hotel outdoor spaces by easily compensating for built-in structural falls.
Pool Surrounds
Ensures an anti-slip, perfectly level walking surface around pools with immediate water evacuation.
OEM/ODM Development Available for Special Applications
Engineered for Rapid Installation
Assess & Calculate
Determine the final elevation minus paver thickness. Use the Taurus Pedestal Calculator to estimate the exact quantities and height ranges required based on the area and slope.
Assemble & Position
Assemble the base, extender (if needed), and head. Position the pedestals on the substrate following your paver grid layout (typically 300-600mm centers).

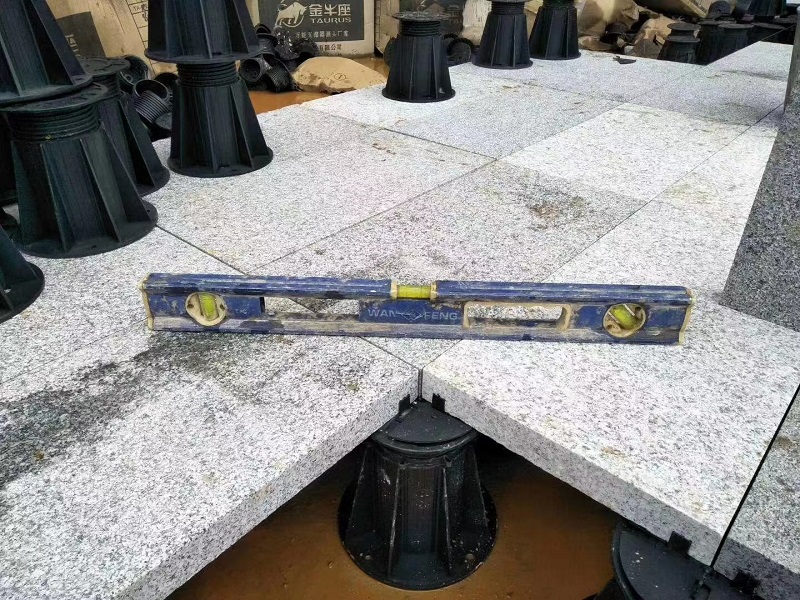

Adjust & Level
Rotate the collar or base to dial in the precise millimeter height. If the substrate is sloped, dial the base slope corrector from 0-5% to ensure the head is perfectly horizontal.
Lay & Lock
Place the porcelain or stone pavers securely onto the spacer tabs. Lock the pedestal height by firmly tightening the reverse fix collar to prevent future vibration shifts.

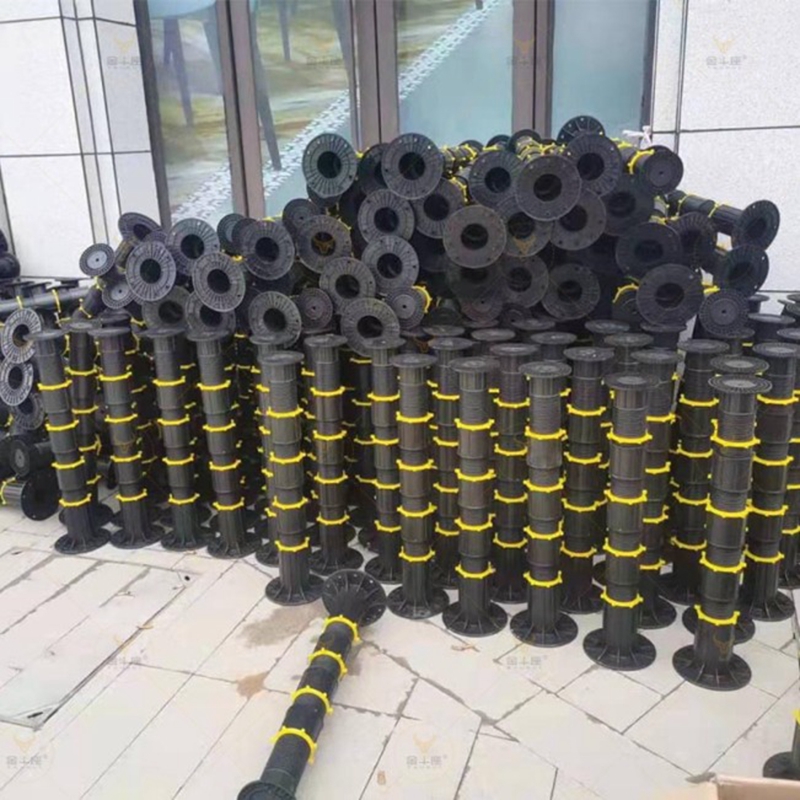

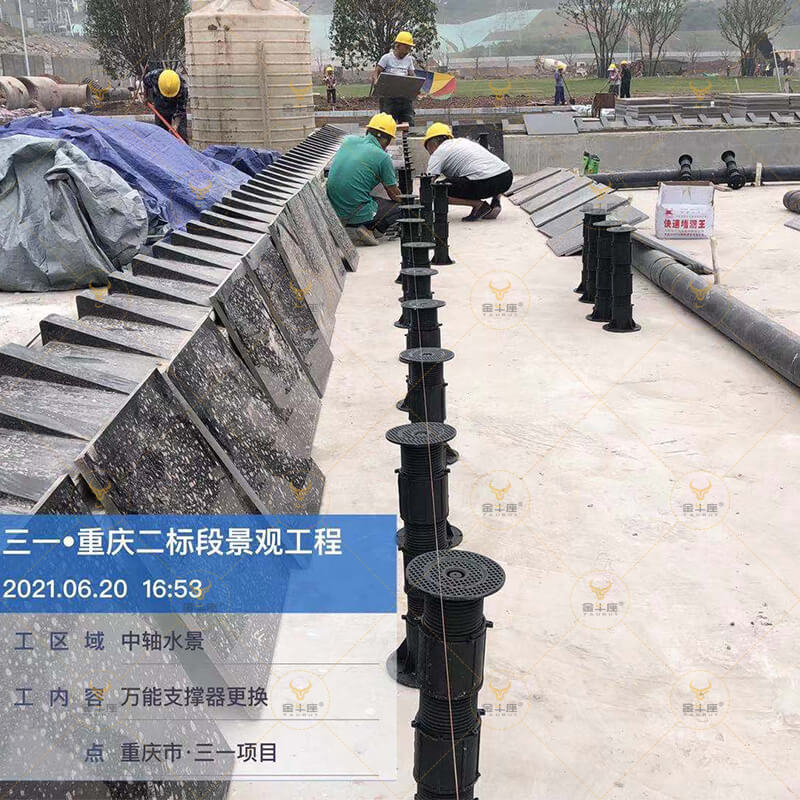

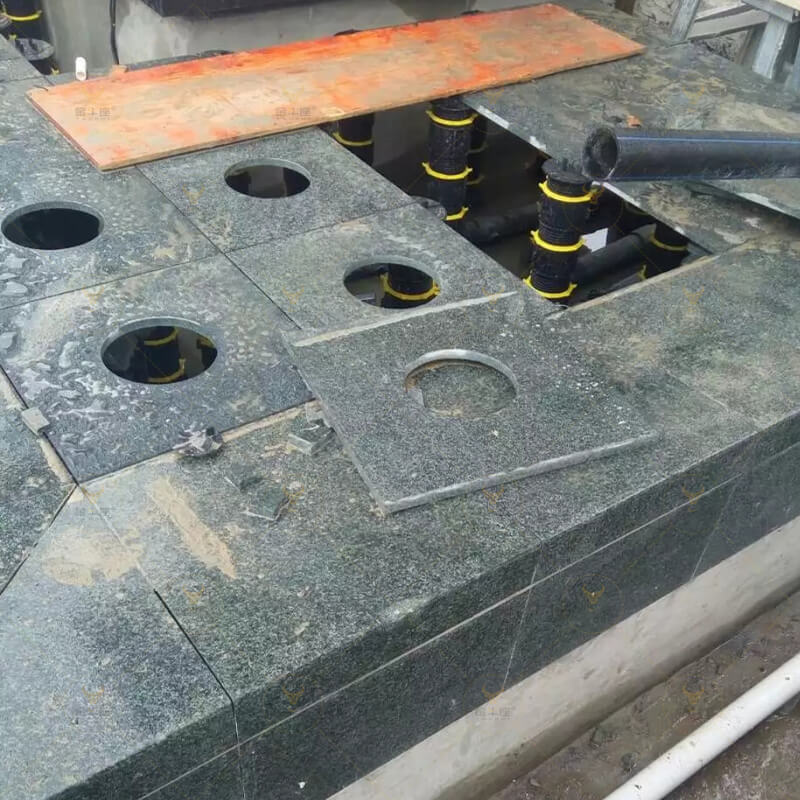

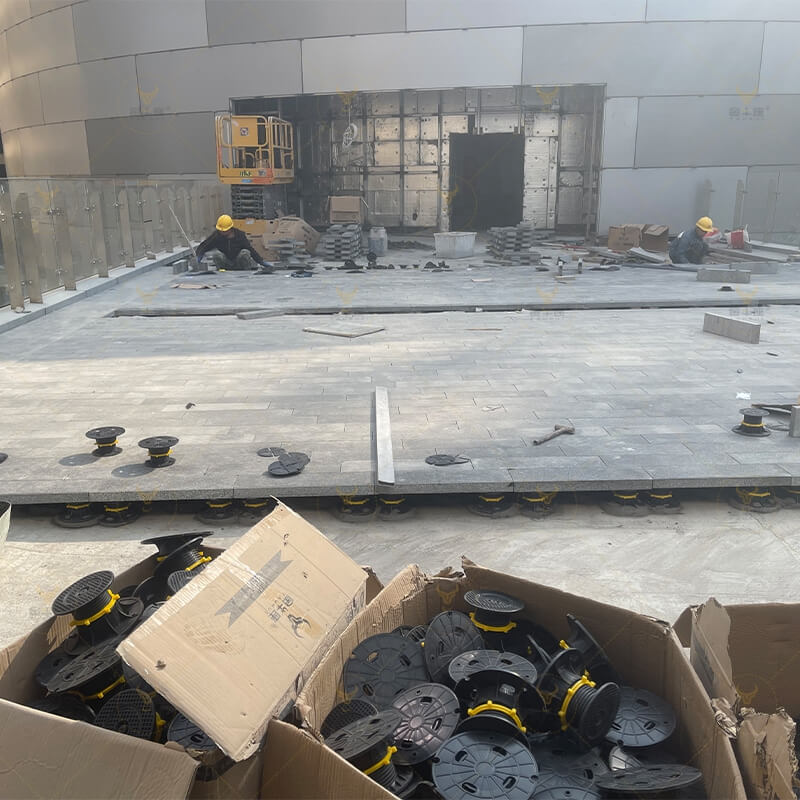

Global Engineering Case Studies
From luxury residential terraces to massive commercial plazas, see how the Taurus Standard elevates global projects.

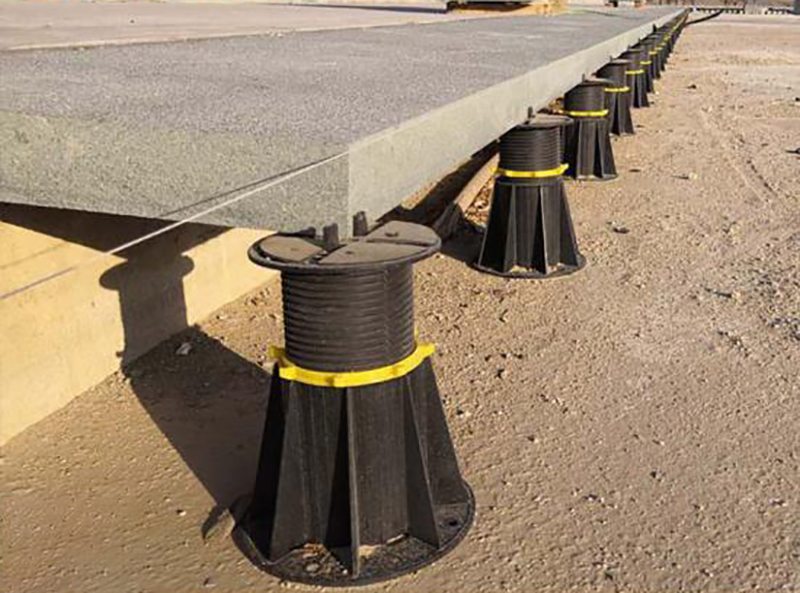

Precision Estimation with Our Calculator
Ensure a flawless and efficient installation by accurately calculating the exact quantities and height ranges required for your paving project. Prevent material shortages and avoid unnecessary waste.
Frequently Asked Questions
Find quick answers to common questions about our products, installations, and manufacturing services.
Still have questions?
Can't find the exact answer you're looking for? Our engineering team is ready to provide custom solutions and accurate quotes.
Or reach us directly
Ready to Elevate Your Paving Project?
Partner with Taurus Tech. Bypass the middlemen and leverage our manufacturing prowess to secure factory-direct pricing, scalable fulfillment, and uncompromising quality.
Looking for a different flooring solution?
If you are installing wood or composite joists, explore our specialized decking systems.
