Self-Leveling Pedestal Systems
Engineered for precision. Taurus Self-Leveling Pedestal Systems feature an articulating head that automatically compensates for ground slopes up to 5%, ensuring a perfectly horizontal surface without manual calculation.
Featuring an innovative top-adjustment design, our smart pedestals allow for real-time millimeter leveling using an adjustment key—even after the heavy pavers or decking are laid. This significantly accelerates commercial installation speed and guarantees a flawless, lippage-free finish for demanding architectural projects.
Dual Slope-Correction Technologies
Taurus offers two distinct engineering approaches to conquer uneven substrates, ensuring maximum stability for both standard and heavy-duty load requirements.

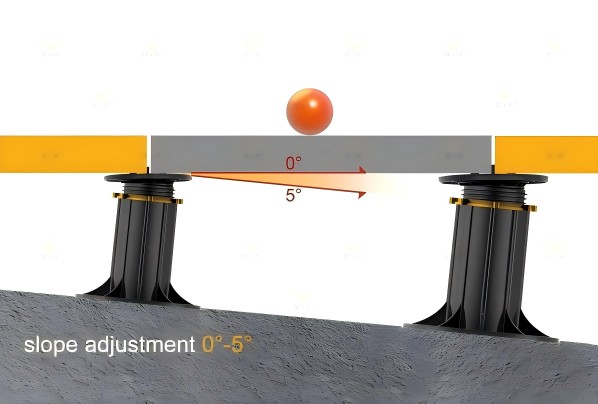

Articulating Head Auto-Correction
Integrated directly into the TA-V series pedestal head. A ball-and-socket joint mechanism automatically pivots to absorb substrate inclines up to 5%, keeping the top surface dead-level without any manual accessory attachment. Ideal for rapid deployment.

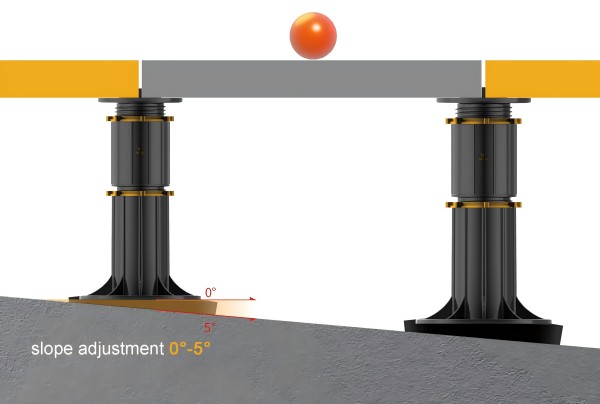

Base Slope Corrector Integration
Engineered for extreme loads. By pairing our standard pedestals with an independent base slope corrector, contractors can manually dial in 0% to 5% compensation at the foundation level. Ensures the central core remains perfectly vertical for maximum compressive strength.
The Self-Leveling Pedestal Series
Precision-engineered support systems. Offering unparalleled versatility and exceptional stability for the most demanding commercial raised flooring projects.
TA-VA Series
- Height Range: 65 - 520mm
- Load Bearing: 500 - 800 KG
- Base Ø: 200mm
- Auto Slope: Up to 5%

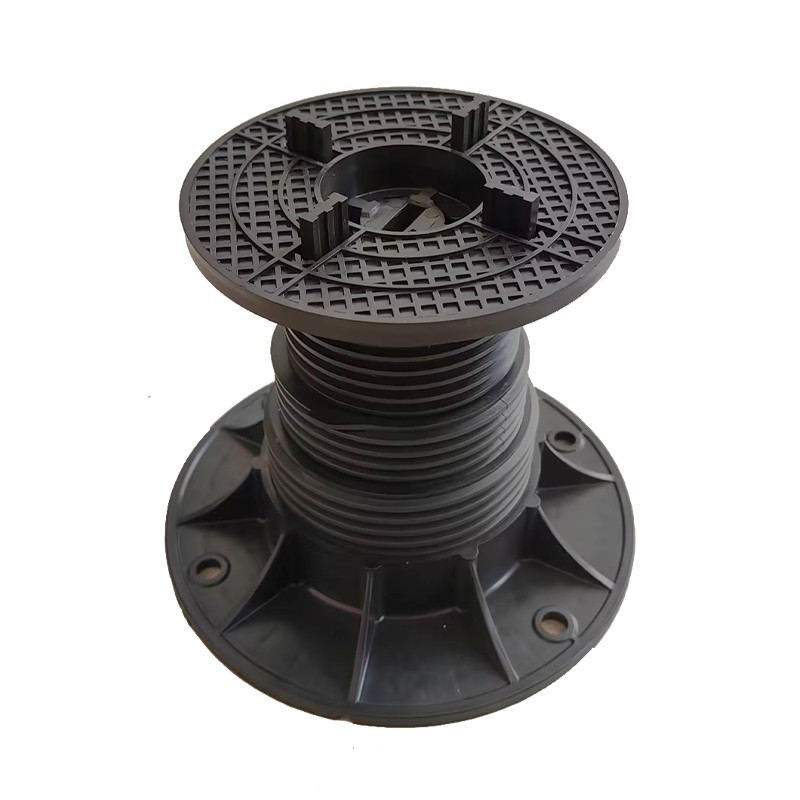

TA-VM Series
- Height Range: 60 - 215mm
- Load Bearing: 500 - 1200 KG
- Base Ø: 200mm
- Auto Slope: Up to 5%

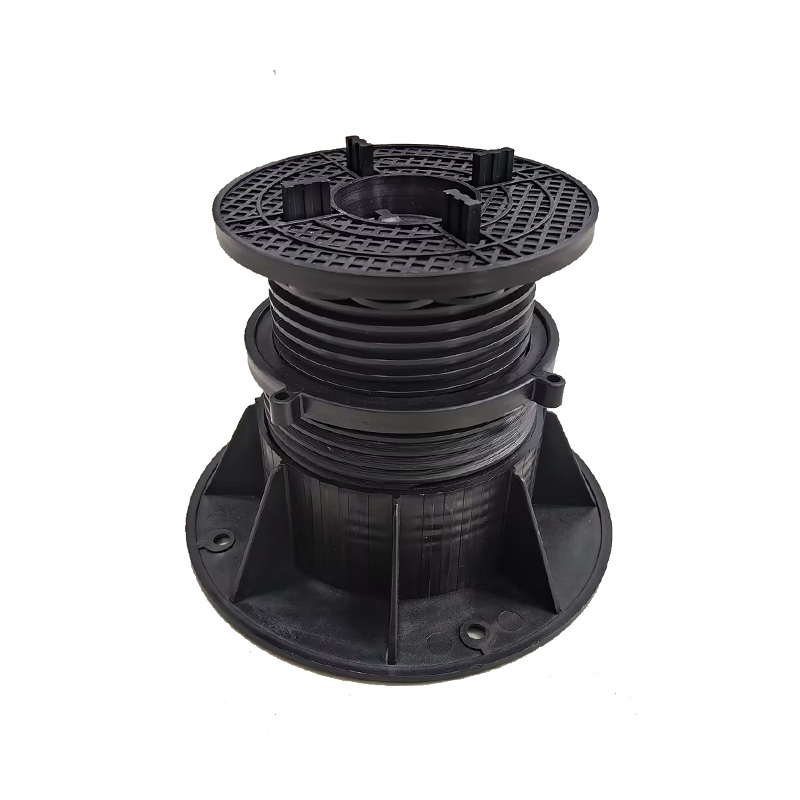

TA-VR Series
- Height Range: 80 - 300mm
- Load Bearing: 1000 - 1500 KG
- Base Ø: 200mm
- Auto Slope: Up to 5%
Calculate Pedestals for Your Complex Project
Stop guessing. Use our Online Pedestal Calculator to estimate the exact quantities and height ranges required for sloped or multi-level installations. Ensure a flawless procurement process.
