TA-VR Self-leveling Pedestals
Advanced Slope Correction

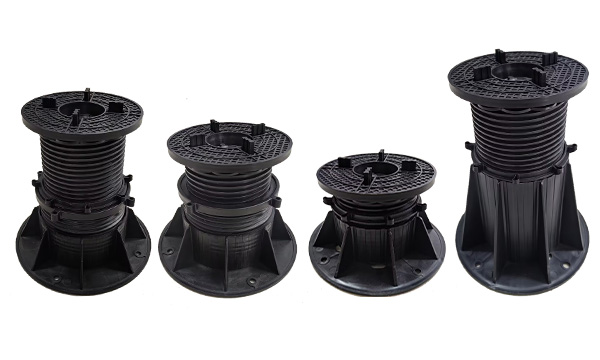

TA-VR Self-Leveling Systems

The ultimate evolution of our heavy-duty TA-R series. Featuring a specially engineered articulated head to automatically compensate for 0-5% ground gradients.

0-5% Auto Correction
TA-VR Series Specifications

Technical Specifications

  • ModelTA-VR Series (Self-Leveling)
  • Slope Correction0-5% (Articulated Head)
  • Height Range80 mm — 300 mm
  • Bearing Weight1000 ~ 1500 KG
  • Head / Base Dia.140 mm / 200 mm
  • Temp Range-30°C to 60°C
  • ApplicationsHigh-rise rooftop decking and sloping surfaces requiring heavy-duty support with automatic alignment.

TA-VR Model Matrix

Engineered for precise height adjustments with built-in slope compensation. Add to your Quote List below.

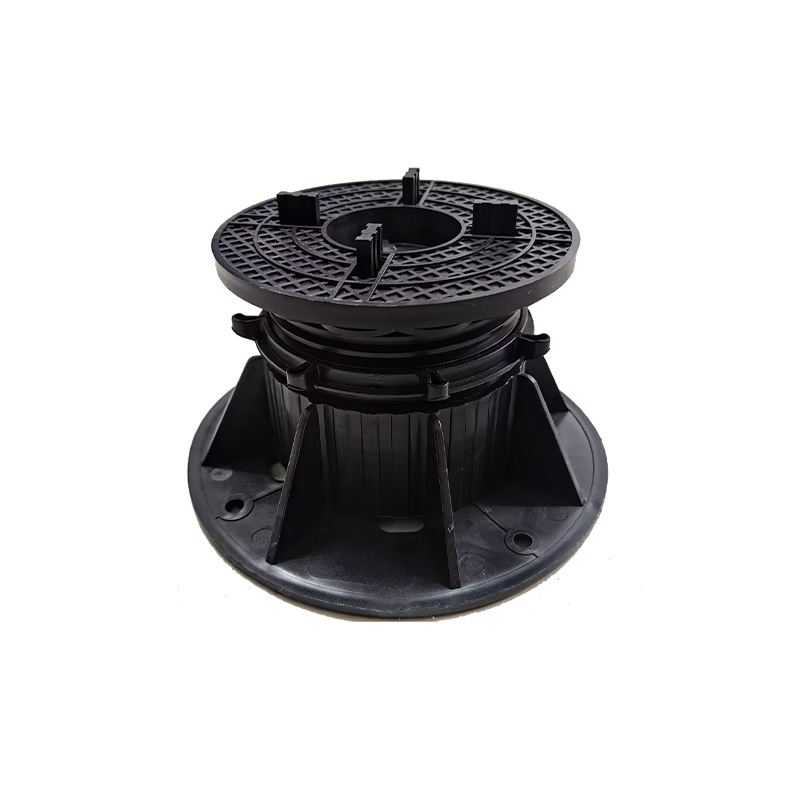

TA-VR0-01

TA-VR0-01

H: 80-115mm
Est. Qty

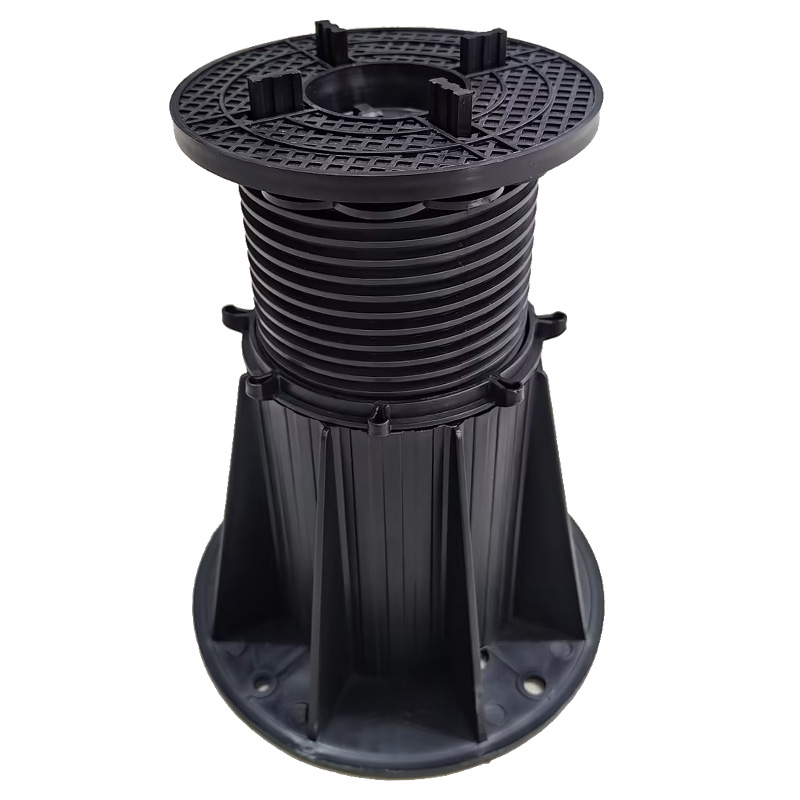

TA-VR0-04

TA-VR0-04

H: 170-300mm
Est. Qty

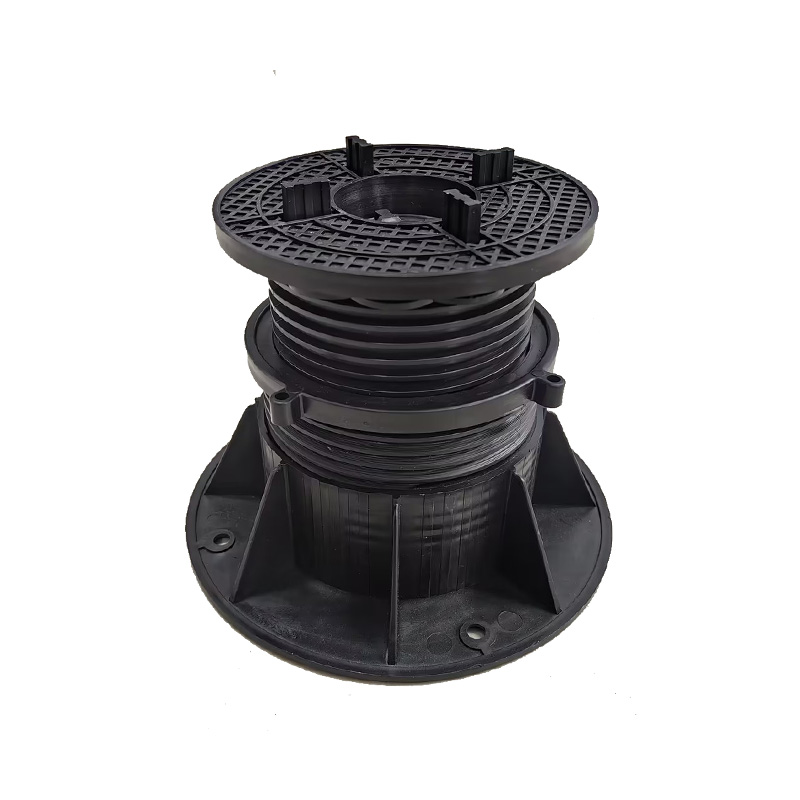

TA-VR0-N01

TA-VR0-N01

H: 90-165mm
Est. Qty

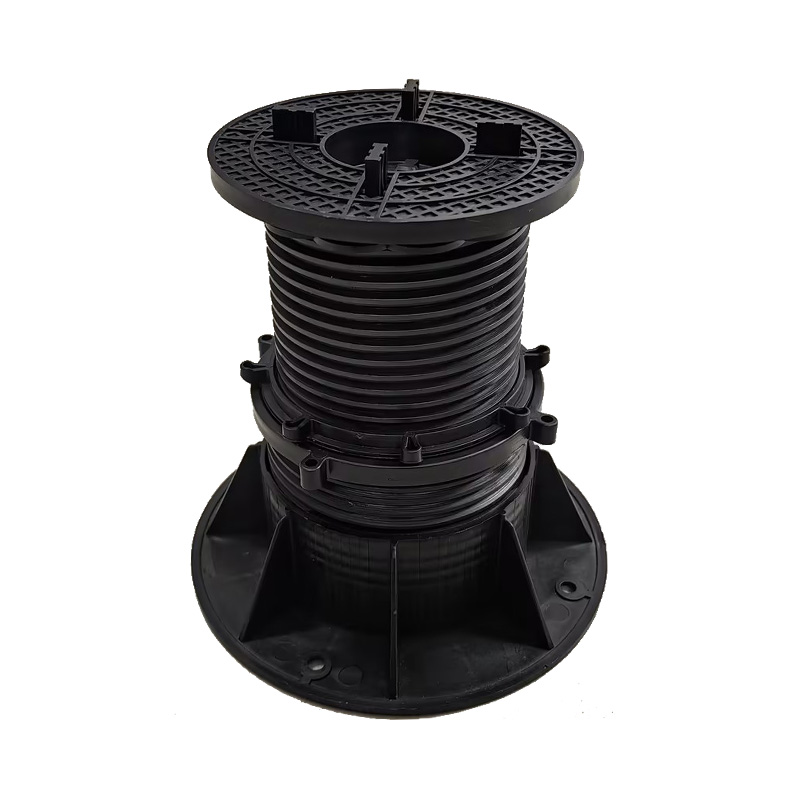

TA-VR0-N02

TA-VR0-N02

H: 165-255mm
Est. Qty

Don't need auto slope correction?

Explore the full range TA-R Series (Up to 1360mm)

View TA-R Master Series

Pedestal Components

Equip your self-leveling pedestals with our comprehensive range of accessories.

Joist Cradle
Joist Cradle

Mainly used for the connection and fixation of wooden floor joists and aluminum alloy joists. Optional sizes: 30-80mm, 40mm, 60mm.

Est. Qty
Spacer Tabs
Spacer Tabs

Leaves seams on the stone to allow quick drainage on the stone surface. Available sizes: 2mm, 3mm, 4mm, 5mm, 8mm, 10mm.

Est. Qty
Rubber Shim
Rubber Shim

Thickness 1.5mm. Increases friction between stone and supporter, adjusts uneven thickness, and reduces noise.

Est. Qty
Base Rubber Pad
Base Rubber Pad

Thickness 4.2mm, diameter 210mm. Placed on the bottom of the supporter to prevent sliding, reduce vibration and noise.

Est. Qty
Slope Corrector
Slope Corrector

Suitable for a base diameter of 200mm, the slope can be adjusted from 0% to 5% by turning the slope plate.

Est. Qty
Vertical Closure Clips
Vertical Closure Clips

Stainless steel clips placed at top/bottom. Effectively prevents sliding caused by natural wind or human factors.

Est. Qty
Stainless Perimeter Spacer
Stainless Perimeter Spacer

Engineered to create space between a raised floor and the walls of a building. Absorbs shock and prevents damage.

Est. Qty
Adjustment Key
Adjustment Key

Made of iron, used for effortlessly adjusting the height of TA-V self-leveling pedestal after installation.

Est. Qty
Metal Tile Spacers
Metal Tile Spacers

Heavy-duty metal spacer tabs. Thickness: 4mm.

Est. Qty

Calculate Pedestals for Your Project

From surface area measurements to spacing recommendations, ensure a flawless and efficient installation using our online calculator.

Online Pedestal Calculator
