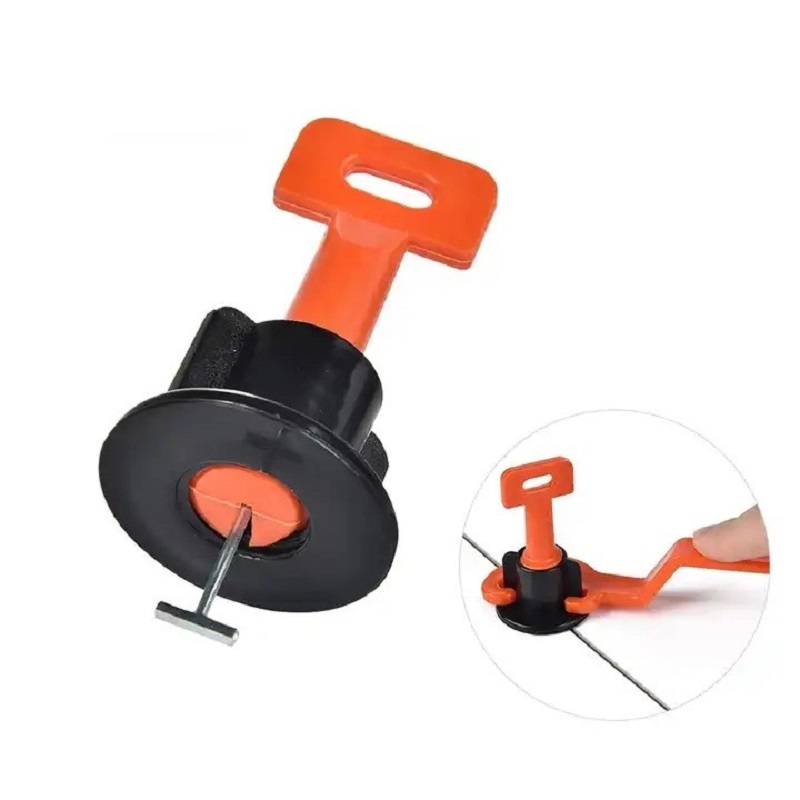

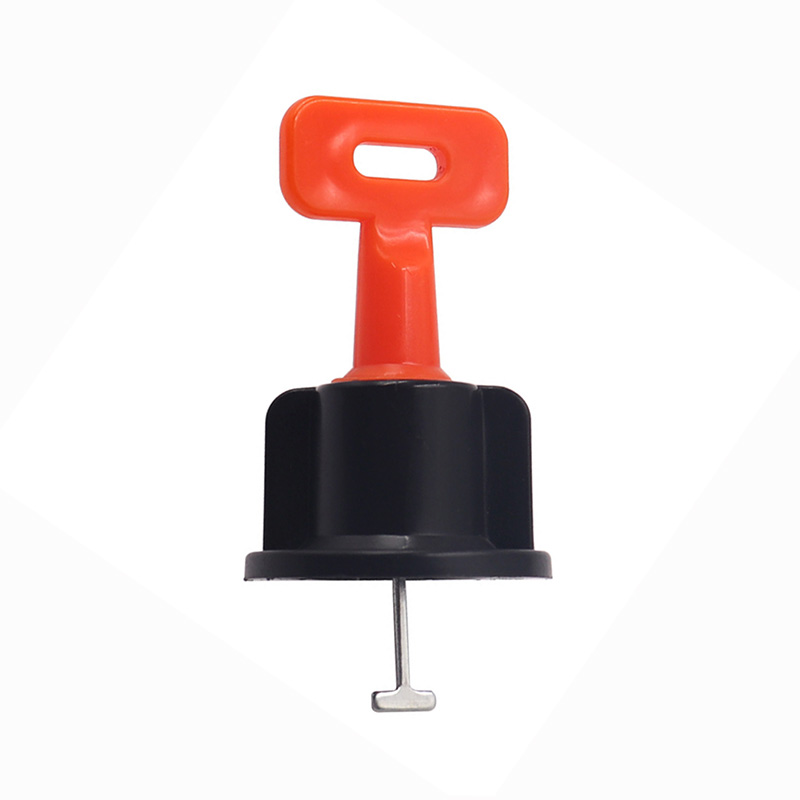

What is the Reusable T-Lock System?
The reusable tile leveling system is made of durable PP material, ensuring it can be used multiple times without easy wear and tear. The accompanying stainless steel needles resist bending, guaranteeing precise tile leveling.
Additionally, these needles are detachable, adding flexibility and convenience to the system. Easy to install and use with a specialized wrench for secure attachment and detachment. This reusable tool is perfect for DIY enthusiasts and professionals alike, enhancing efficiency and producing a flawless, evenly-spaced surface.

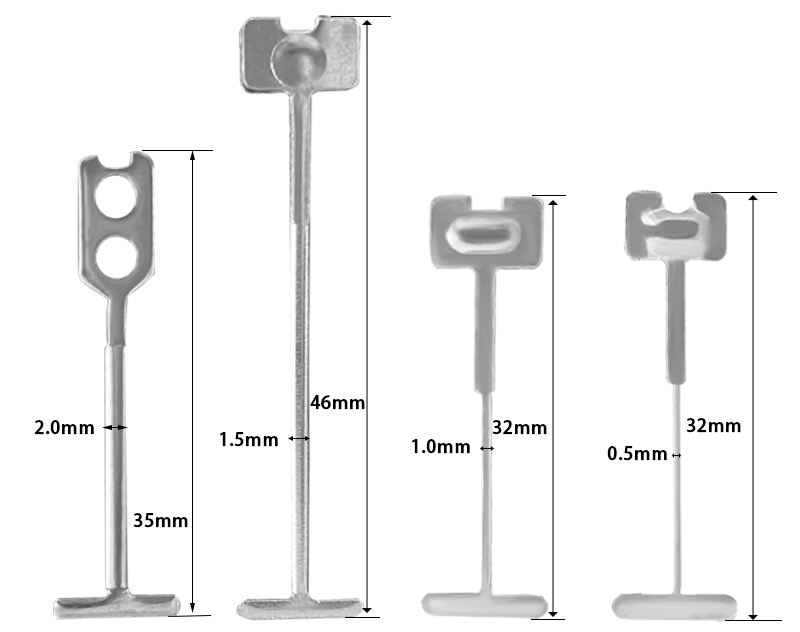

Various Styles of Steel Needles
Our T-Lock system features detachable and replaceable stainless steel needles, allowing you to adapt to different tile gap requirements while drastically reducing long-term costs.
- Standard Options: The steel needles come in sizes of 0.5mm, 1.0mm, 1.5mm, and 2.0mm.
- Most Popular: Our default system features a steel needle size of 1.5mm, suitable for tile thicknesses ranging from 3-16mm (1/8" - 5/8").
- Extended Needles: The extended 1.5mm steel needle is specifically designed for extra-thick tiles between 15-26mm.
Assembly and Usage Guide
Master the reusable T-Lock system for a perfect, lippage-free installation.
Initial Assembly
By inserting the steel needle into the T-shaped column and securing it with the fixing component, then fitting the nut, the assembly is complete.

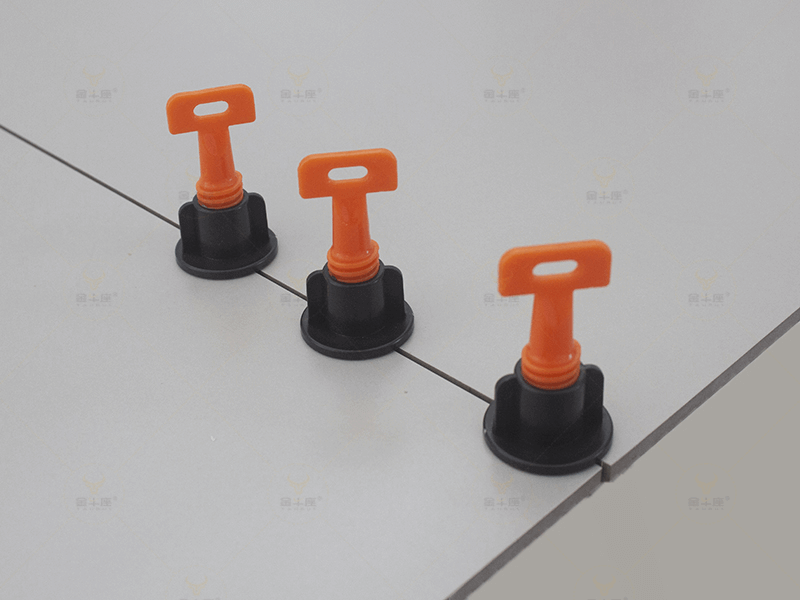

Standard Application Steps
Apply adhesive or mortar to the floor. Place the first tile and adjust with the leveler as needed.
To place the second tile, insert the T-pin between the two tiles. Turn the nut with a wrench until the tiles reach a perfectly flat plane.
Use the tile leveling system to make minor adjustments to the tile position and spacing as needed.
Crucial Step: Remove the tile leveling system before the adhesive or mortar has fully cured (usually around 4-6 hours). Clean them for future use.
Important Installation Notes
- ● This system is designed to ensure that the tiles are level and will not move as the mortar hardens, reducing installer fatigue.
- ● Use the right amount of force during installation to avoid lifting or damaging tiles.
- ● Add a third spacer/leveler for support when working with extremely large or heavy tiles.
- ● Always choose the appropriate size and model of needles for a stable and visually appealing result.
