Spin Doctor Tile Leveling System

Effortless Spin Doctor System

If you're looking for a system that can help you install tiles with ease, then you definitely need to explore the Spin Doctor (Twist) Tile Leveling System. This amazing system allows you to achieve beautiful, even, and natural results without requiring any additional tools.

Its unique free-spinning design allows you to easily install tiles on uneven surfaces with just a quick turn of the wrist. It ensures that your floor always maintains a uniform, perfectly flat, and professional appearance.

Components of the Spin Doctor System

A tool-free tile leveling solution featuring interchangeable bases and fully reusable caps. Designed for maximum installation speed.

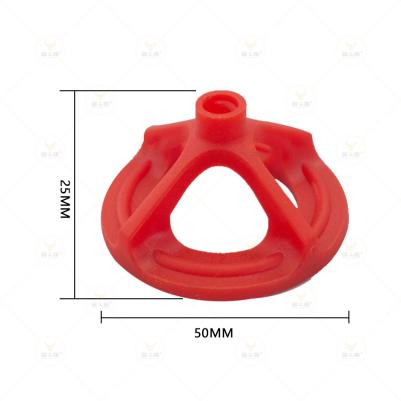

Universal Screw Cap

Universal Screw Cap

Ergonomically designed for a comfortable grip. It can be used interchangeably with different bases of the same model and is 100% reusable for multiple applications.

Read More

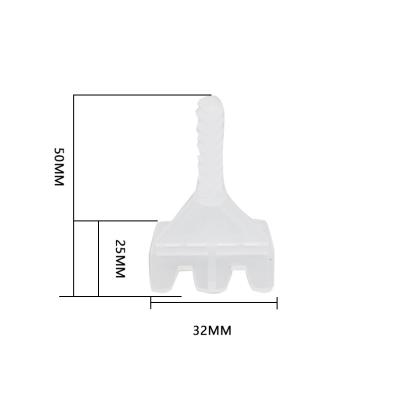

Linear Base

"-" Type Base (Linear)

Size: 1mm, 1.5mm, 2mm, 2.5mm, 3mm

Fit: For 5-17mm tile thicknesses

Placed along the edges of two adjacent tiles to ensure consistent and uniform spacing.

Read More

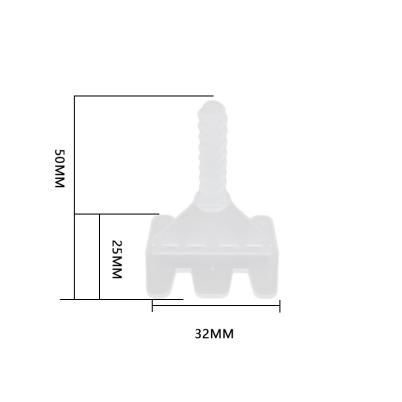

Cross Base

"+" Type Base (Cross)

Size: 1mm, 1.5mm, 2mm, 2.5mm, 3mm

Fit: For 5-17mm tile thicknesses

Placed directly in the center of four intersecting tile corners. Doubles as a perfect cross spacer.

Read More

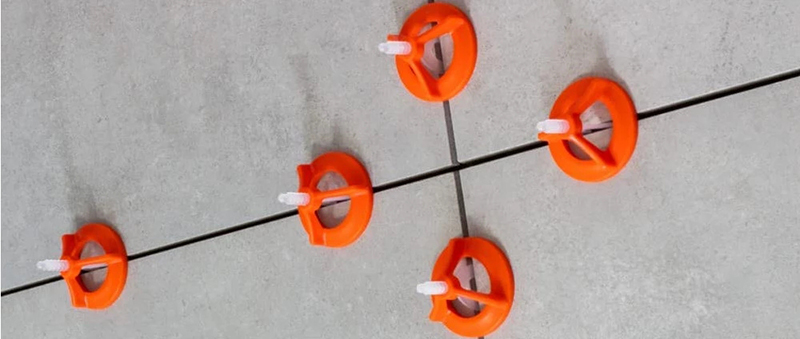

How To Use Spin Doctor Leveling System?

No tools needed. Just spin to lock and kick to remove.

1

Before laying tiles, clean the underlying surface and ensure it is undamaged.

2

Place the first tile onto the base surface and insert the "-" type base under the edge to support the tile.

3

Place the second tile adjacent to the first tile. Spin the cap down onto the threaded base until the two tiles are perfectly flush.

4

Continue this process, inserting bases on all sides of each tile to ensure uniformity.

5

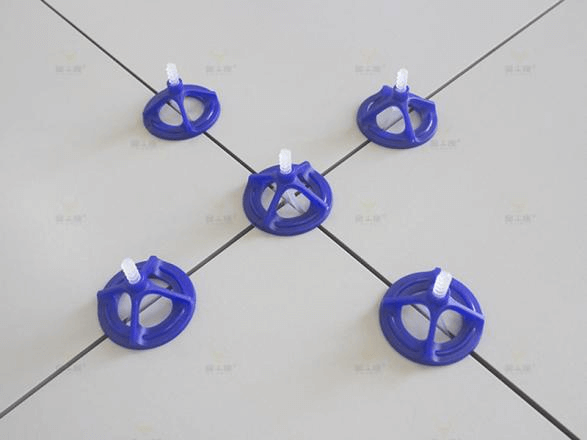

For the intersection of four tiles, simply use the "+" type base for simultaneous spacing and leveling.

6

Allow a curing time of 24 hours to ensure the thinset/mortar is completely dried.

7

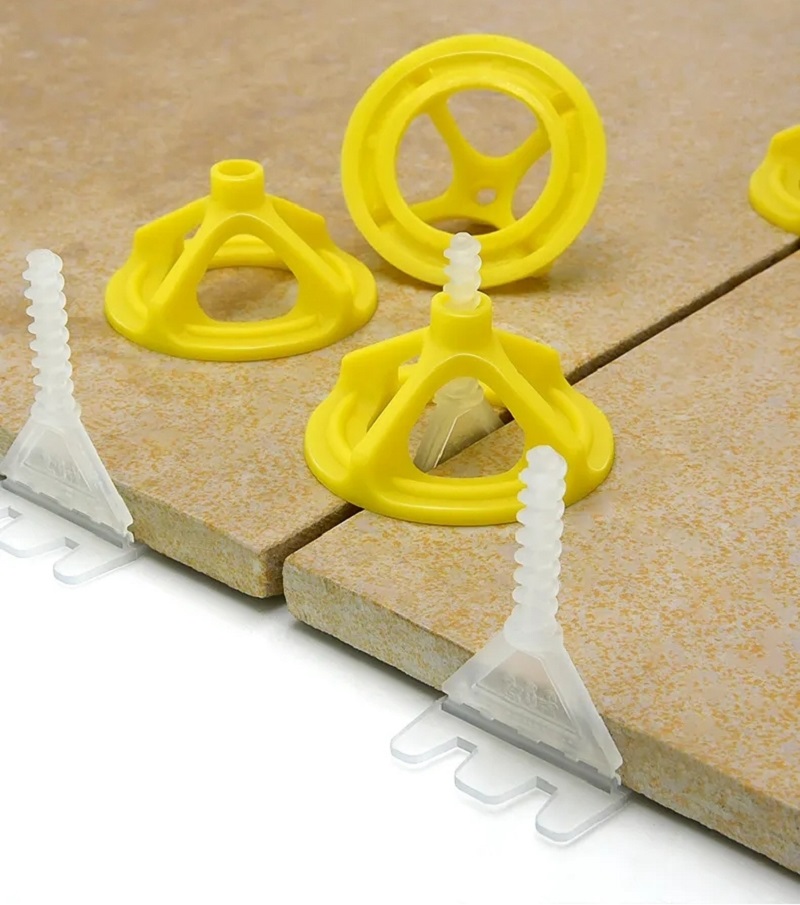

Kick the caps off along the grout line. Retrieve the caps from the broken bases for future use.

Video Guides & Testing

Quality Test: Spin Doctor Tile Leveling System
Removal Test: Spin Doctor Tile Leveling System
Cyclone Tile Leveling System: Unleash your DIY creativity!

Frequently Asked Questions

Find quick answers to common questions about our products, installations, and manufacturing services.

What tile sizes and thicknesses are suitable for the Spin Doctor tile levelers?
A:
The Spin Doctor tile levelers is designed to accommodate tiles of various sizes up to 20mm (3/4) in thickness. It is especially beneficial for larger tiles or when laying tiles on uneven surfaces, as it greatly enhances the efficiency and quality of the installation.

Still have questions?

Can't find the exact answer you're looking for? Our engineering team is ready to provide custom solutions and accurate quotes.

Or reach us directly

sales@tauruseco.com

Stock the Spin Doctor System

Enhance your retail offerings or supply your next major project with our top-selling, tool-free Spin Doctor systems. Contact us for factory-direct wholesale pricing.
