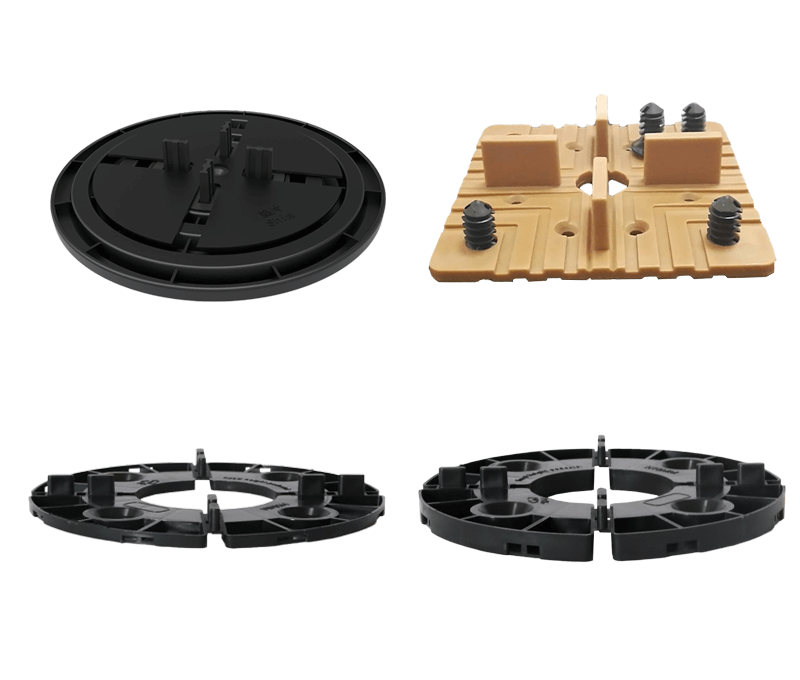

TA-FH Series Entry-Level

Fixed Height Pedestal Systems

The most straightforward, heavy-duty support solution in our matrix. Designed for areas with minimal threshold heights. Suitable for both paving and timber decking, eliminating the need for industrial adhesive or mortar. Low maintenance, extremely cost-effective, and engineered to last.

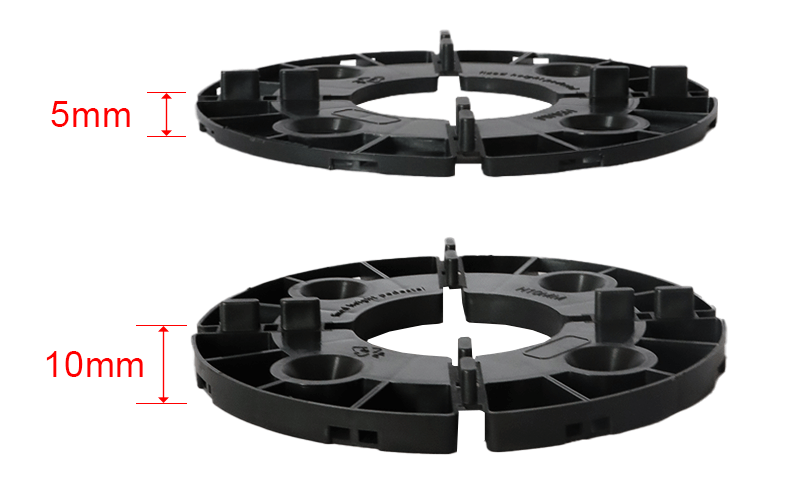

Ultra-Low Profile Pedestals (5mm & 10mm)

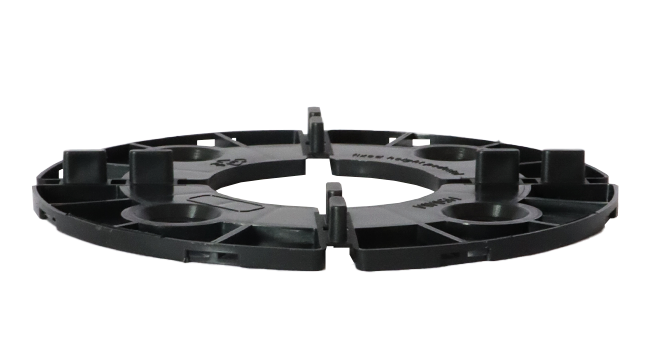

TA-FH-N5 Pedestal 5mm

TA-FH-N5

  • Height:5mm
  • Diameter:150mm
  • Load Bearing:3000 KG
  • Material:PP (Polypropylene)
  • Temp Range:-30℃ to 60℃

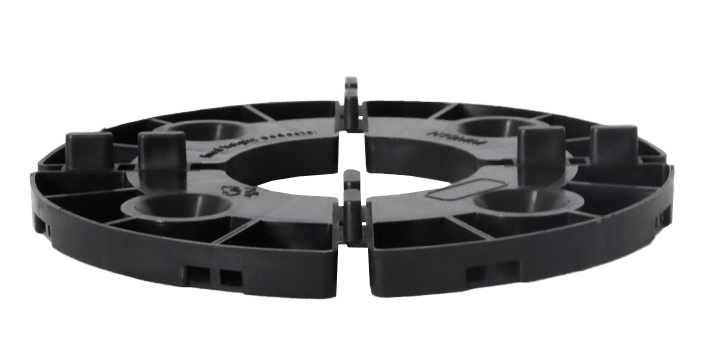

TA-FH-N10 Pedestal 10mm

TA-FH-N10

  • Height:10mm
  • Diameter:150mm
  • Load Bearing:3000 KG
  • Material:PP (Polypropylene)
  • Temp Range:-30℃ to 60℃
Pedestal Application

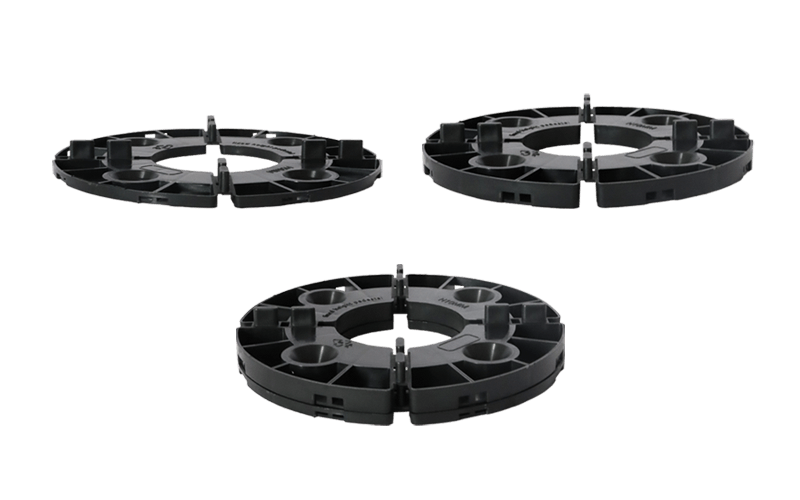

Pedestal Assembly

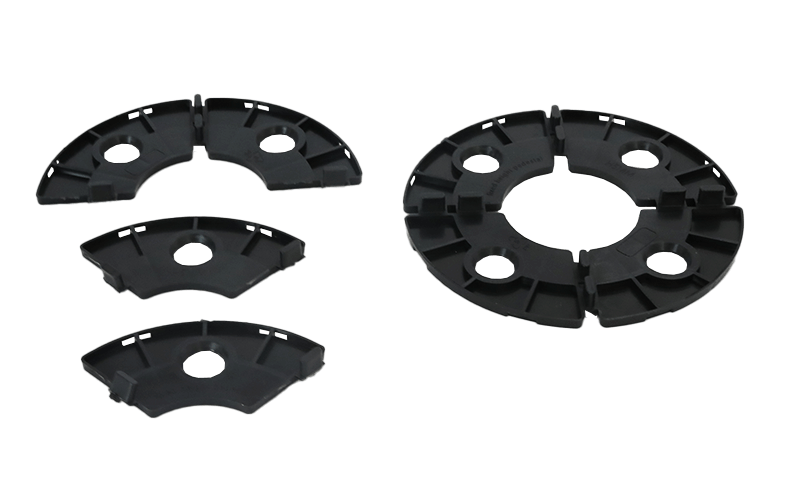

Pedestal Decomposition

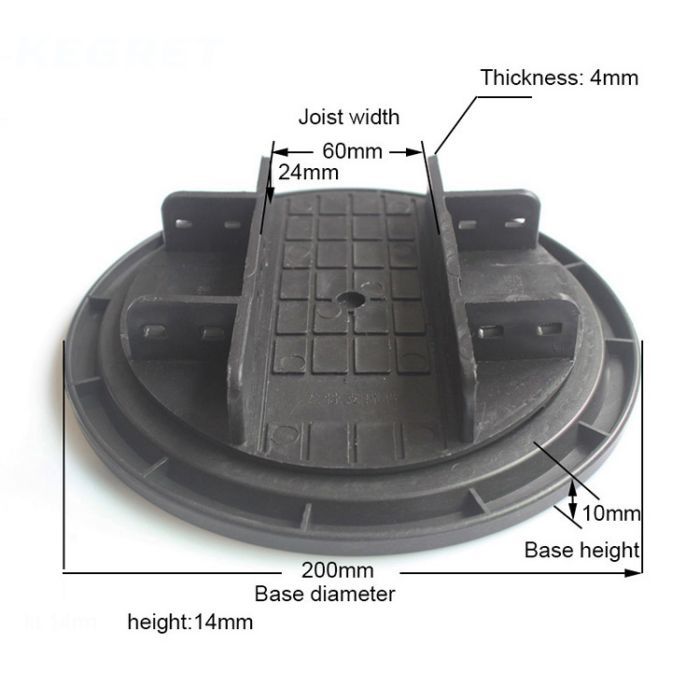

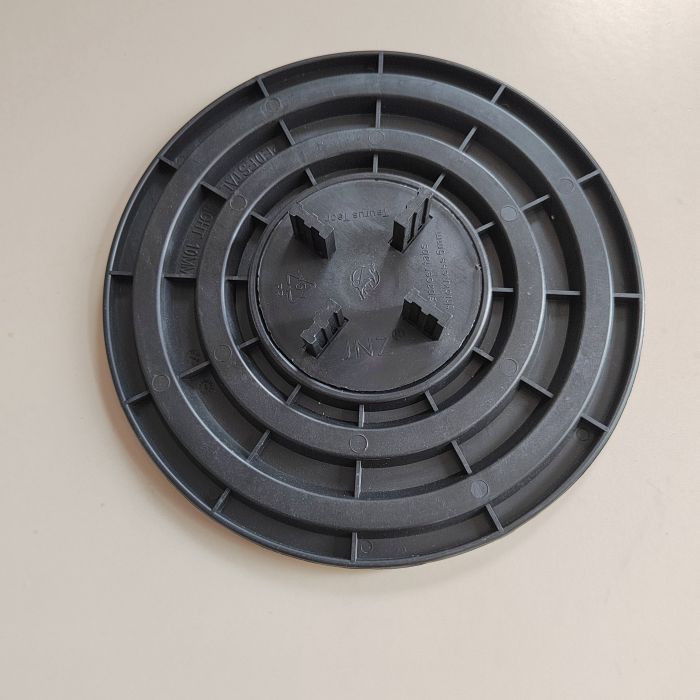

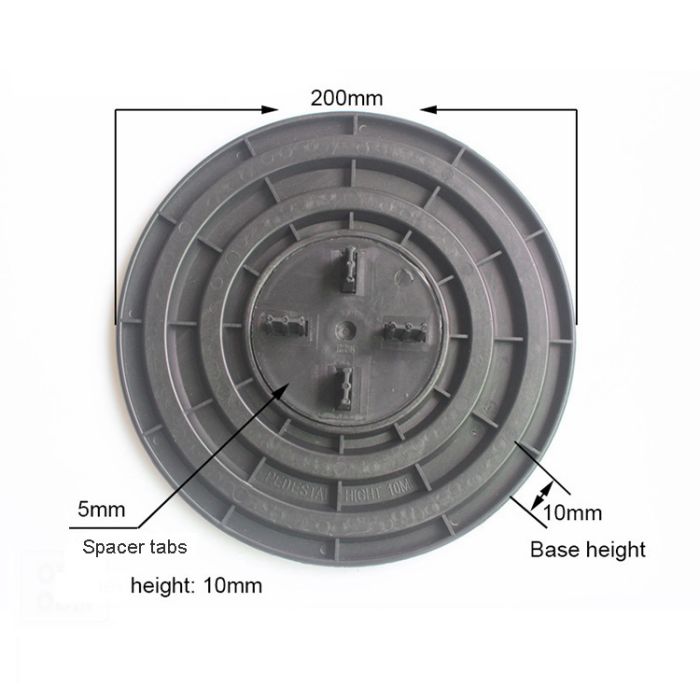

TA-FH-10 Stackable Pedestal
Stackable Core System

TA-FH-10 (Stackable)

  • Height:10mm (Stackable)
  • Base Diameter:200mm
  • Bearing Weight:3000 KG
  • Compatible With:Shims (2/3/4/5/8/10mm), Spacer Tabs, Joist Cradles (40mm, 50-70mm, 60-80mm, 100mm), and Rubber Shock Pads.

To elevate stone or wooden decks, simply place the appropriate spacer tab or joist cradle on top of the pedestals. The raised platform allows for faster drainage and prevents moisture buildup. Adding a rubber pad at the bottom provides excellent shock absorption and noise reduction.

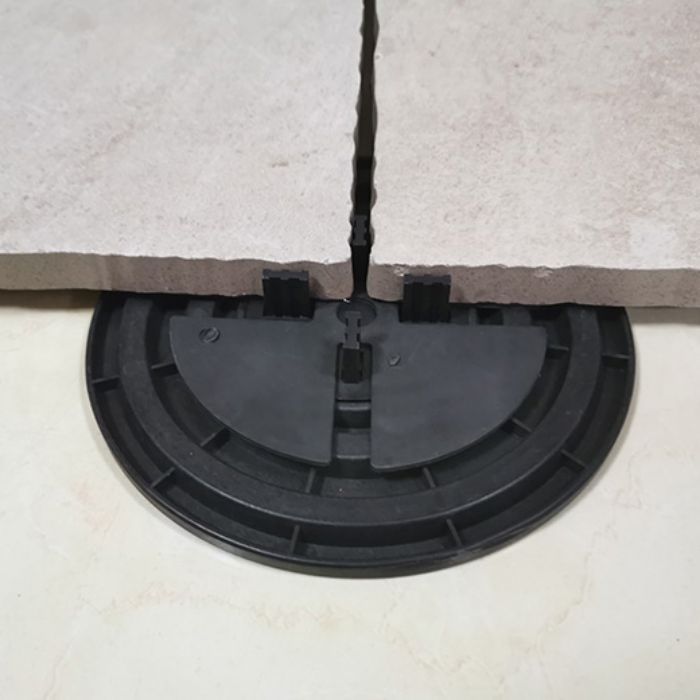

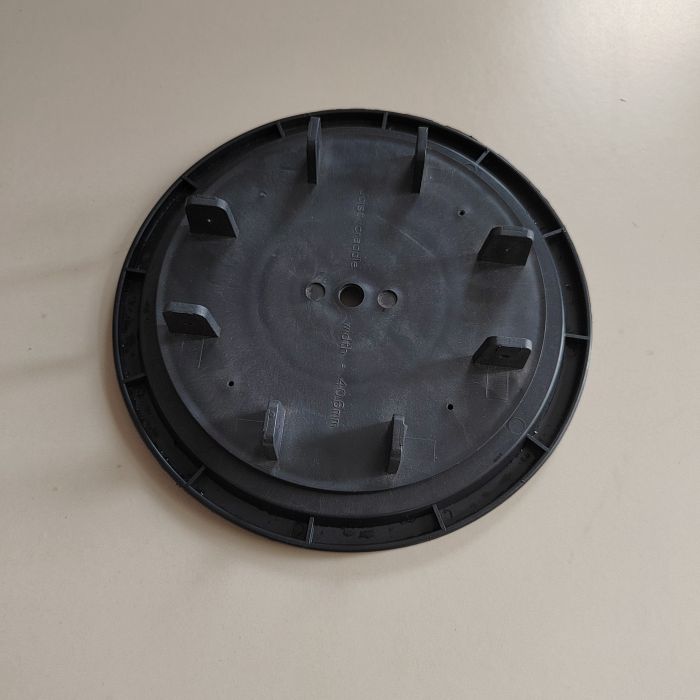

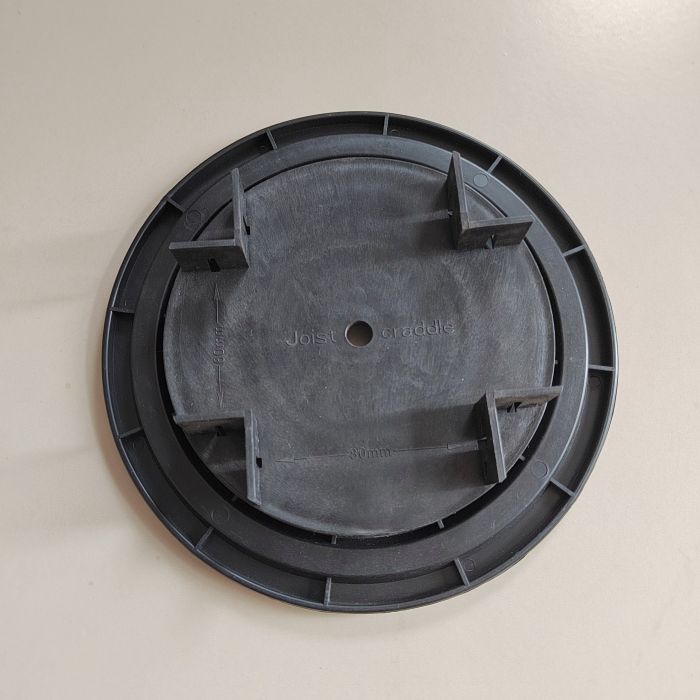

TA-FH-10 Detail
TA-FH-10 Detail
TA-FH-10 Detail
TA-FH-10 Detail
TA-FH-10 Detail

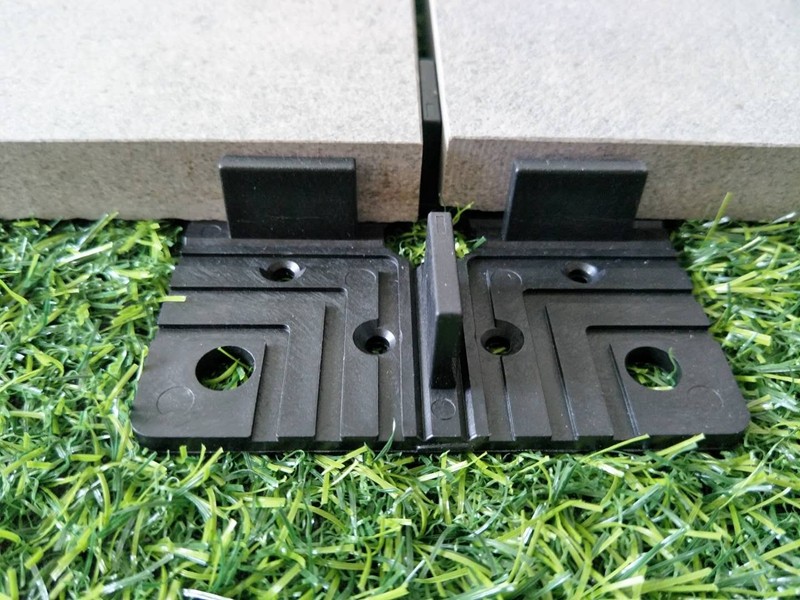

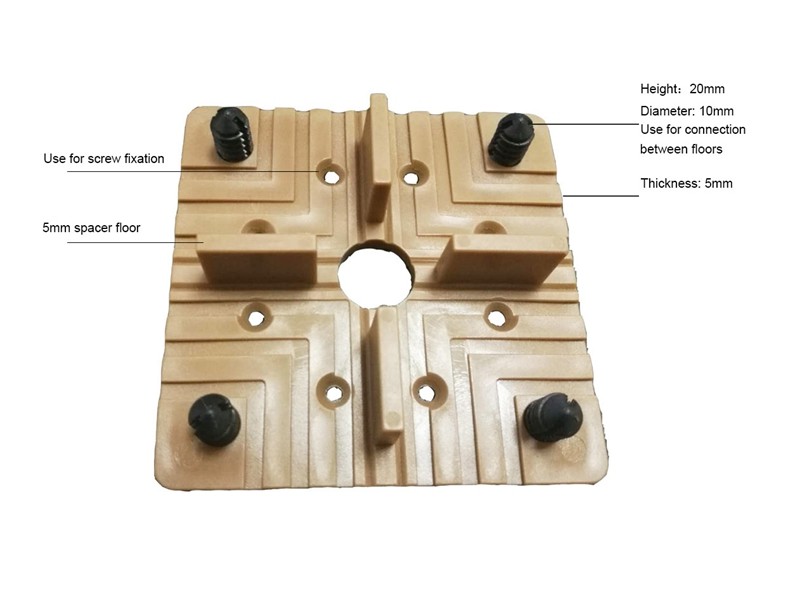

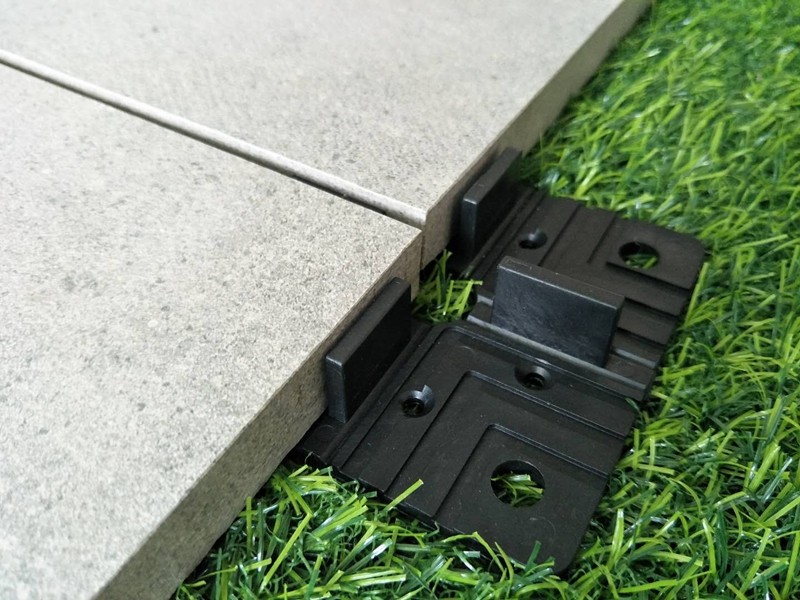

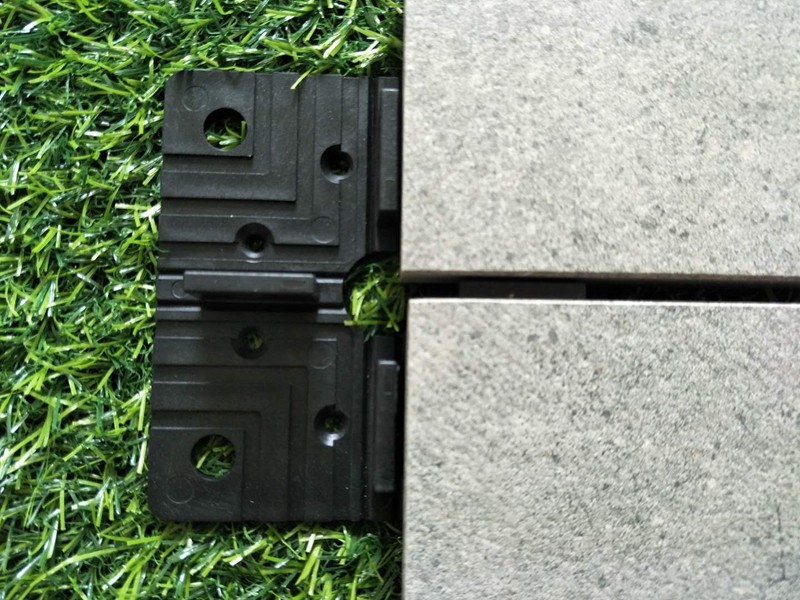

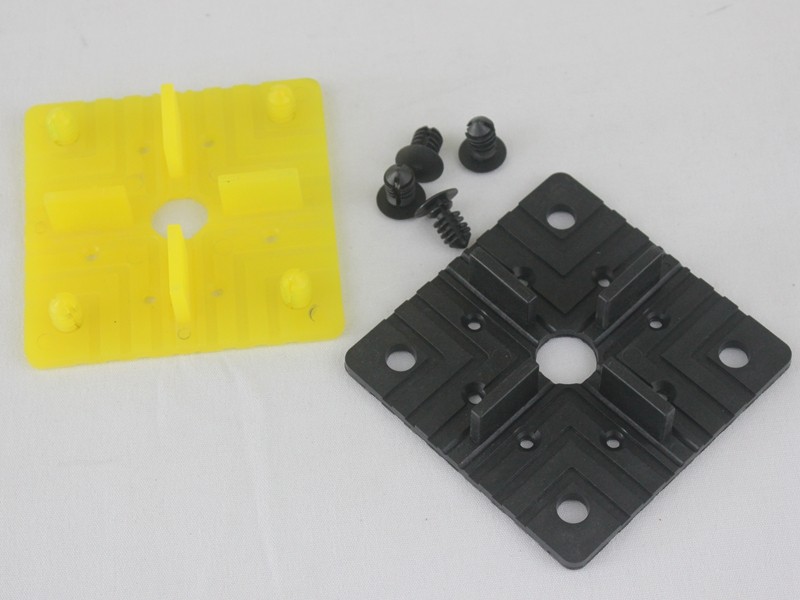

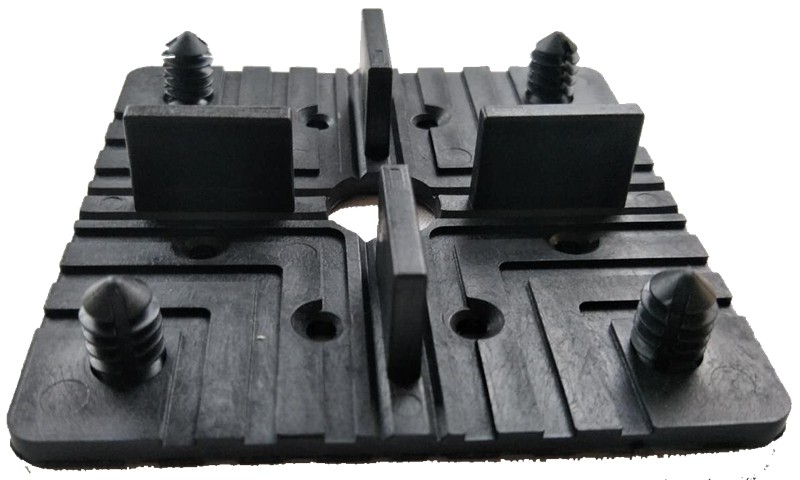

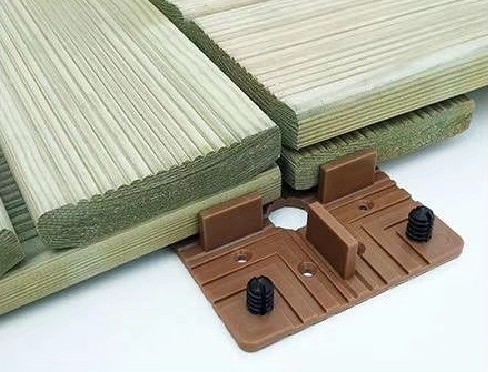

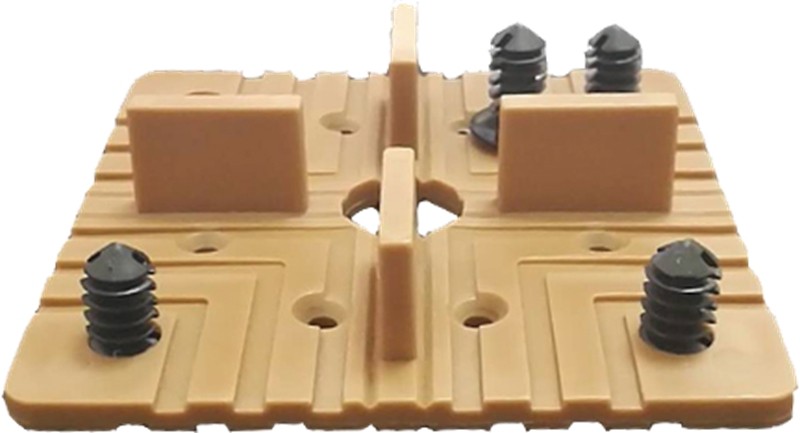

Deck Tile Connector (TA-FH-DTC)

  • Height & Size:5mm | 100 x 100mm
  • Bearing Weight:3000 KG
  • Material:High Density Polypropylene
  • Accessories:Plastic Screws (20mm)

Core Benefits:

  • Corner pins secure tile placement.
  • Elevates the deck tile from wet subsurface to prevent wood rot.
  • Pre-drilled countersunk holes for easy concrete slab fastening.
  • Center drain hole provides improved drainage to prevent pooling.
  • Can be divided into halves/quarters easily using pre-molded score lines.

Product Videos

System Components Matrix

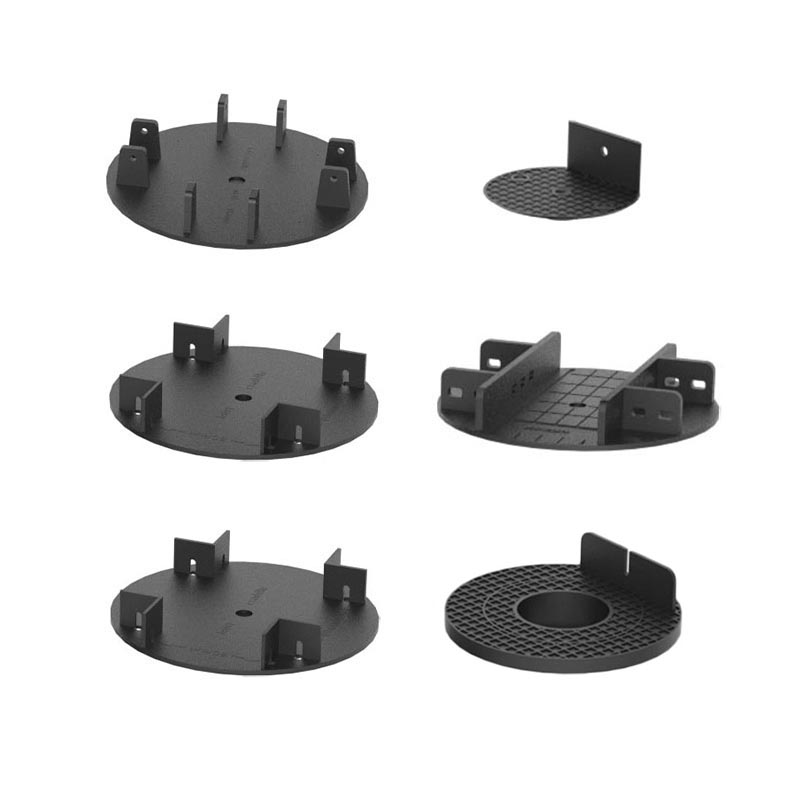

Joist Cradle
Joist Cradle

Mainly used for the connection and fixation of wooden floor joists and aluminum alloy joists. Optional sizes: 30-80mm, 40mm, 60mm.

Est. Qty

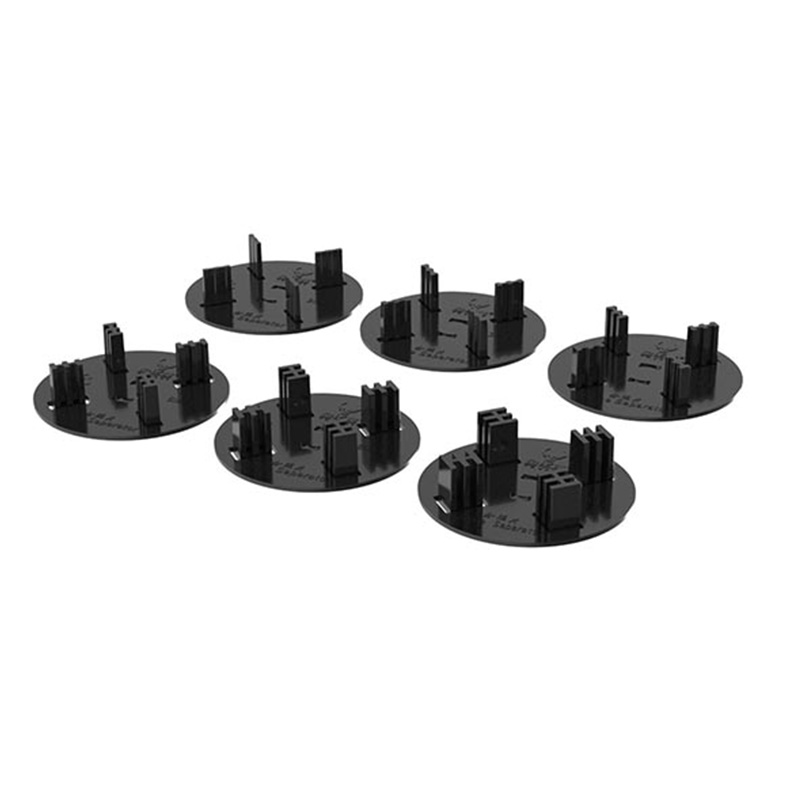

Spacer Tabs
Spacer Tabs

Leaves seams on the stone to allow quick drainage on the stone surface. Available sizes: 2mm, 3mm, 4mm, 5mm, 8mm, 10mm.

Est. Qty

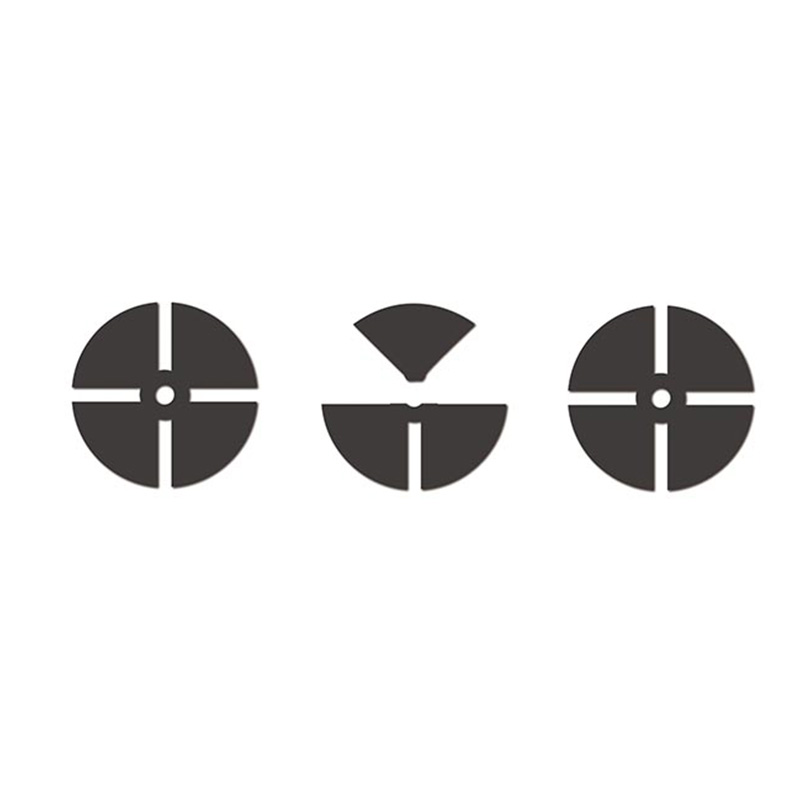

Rubber Shim
Rubber Shim

Thickness 1.5mm. Increases friction between stone and supporter, adjusts uneven thickness, and reduces noise.

Est. Qty
Base Rubber Pad
Base Rubber Pad

Thickness 4.2mm, diameter 210mm. Placed on the bottom of the supporter to prevent sliding, reduce vibration and noise.

Est. Qty

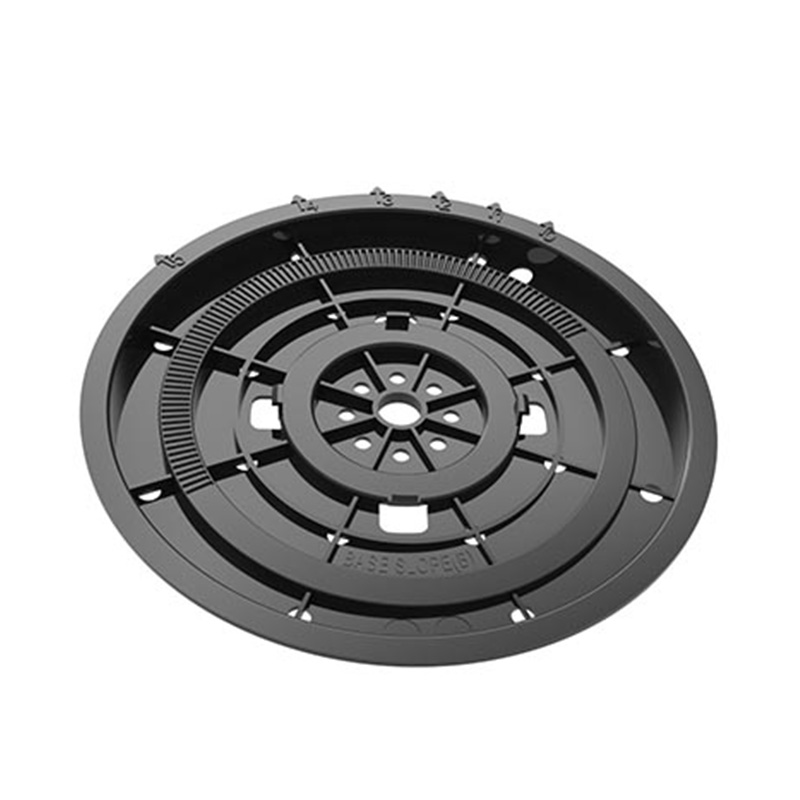

Slope Corrector
Slope Corrector

Suitable for a base diameter of 200mm, the slope can be adjusted from 0% to 5% by turning the slope plate.

Est. Qty

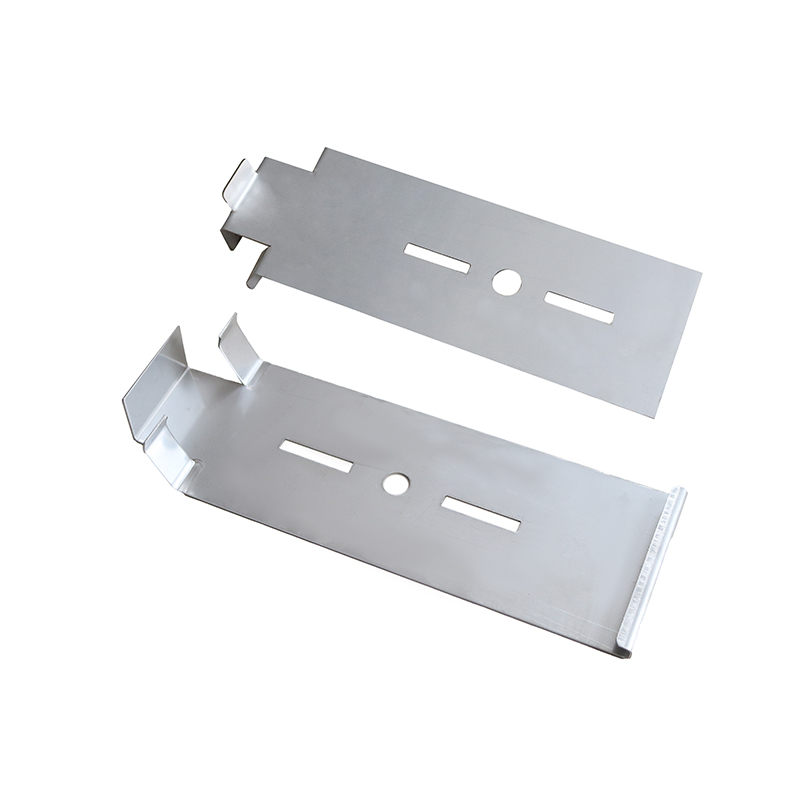

Vertical Closure Clips
Vertical Closure Clips

Stainless steel clips placed at top/bottom. Effectively prevents sliding caused by natural wind or human factors.

Est. Qty

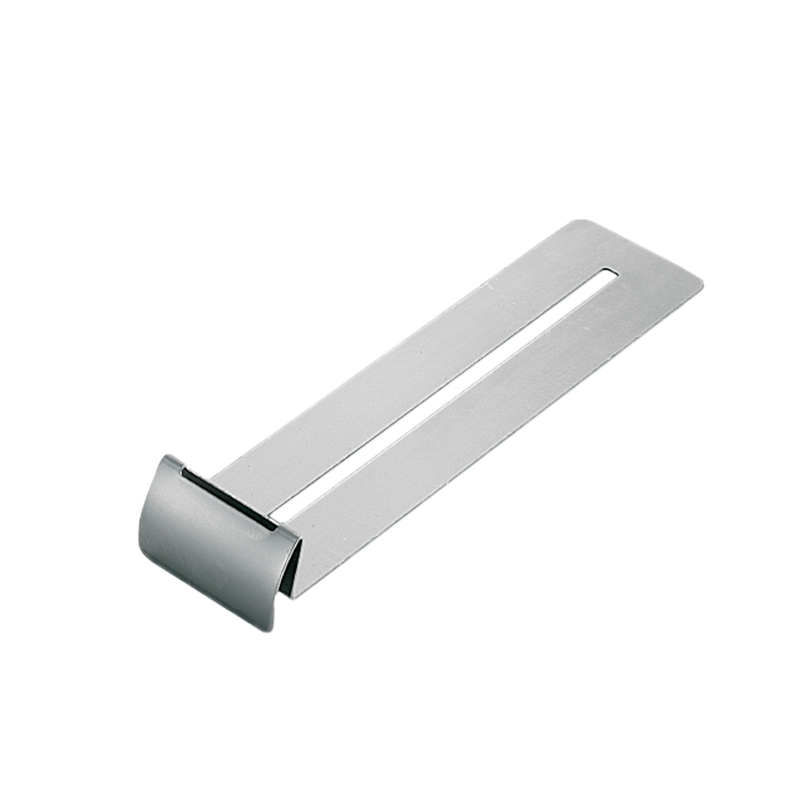

Stainless Perimeter Spacer
Stainless Perimeter Spacer

Engineered to create space between a raised floor and the walls of a building. Absorbs shock and prevents damage.

Est. Qty

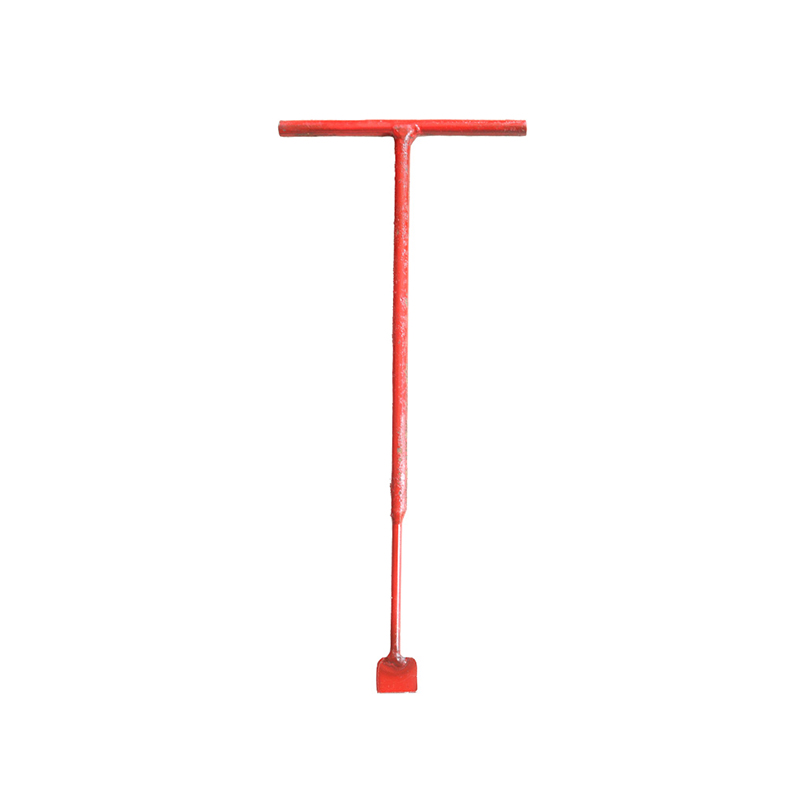

Adjustment Key
Adjustment Key

Made of iron, used for effortlessly adjusting the height of TA-V self-leveling pedestal after installation.

Est. Qty

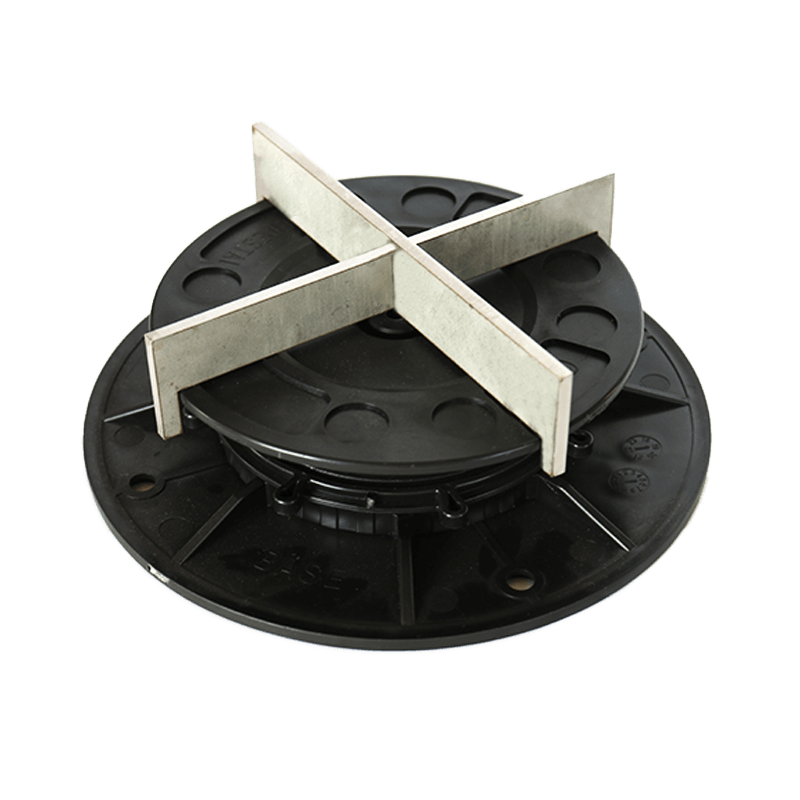

Metal Tile Spacers
Metal Tile Spacers

Heavy-duty metal spacer tabs. Thickness: 4mm.

Est. Qty

Explore Other Pedestal Series

Discover our complete range of adjustable support systems, engineered to conquer any height, load, or slope challenge.

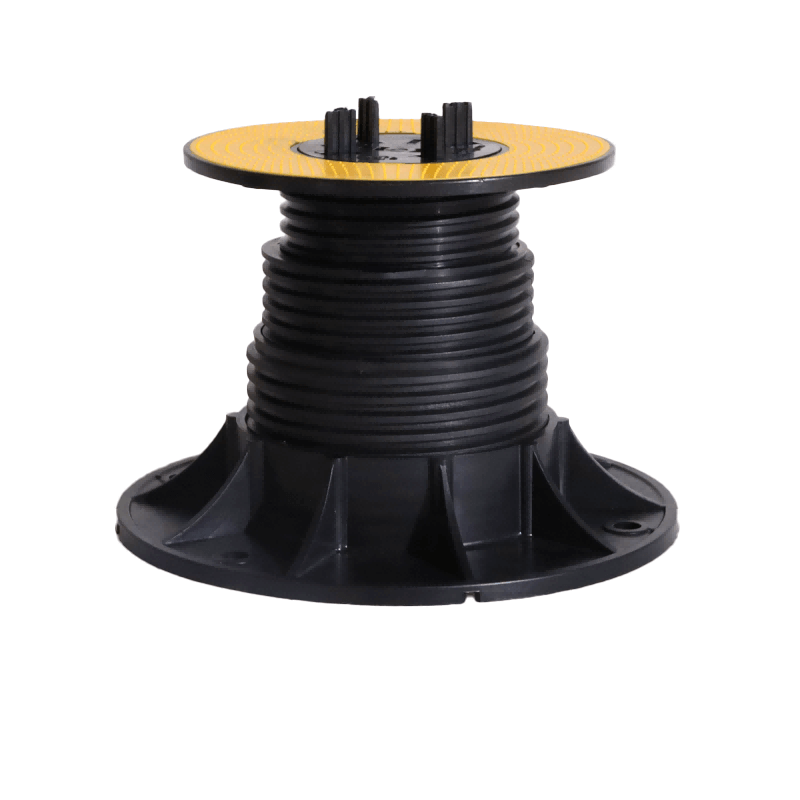

TA-M Series

TA-M Series

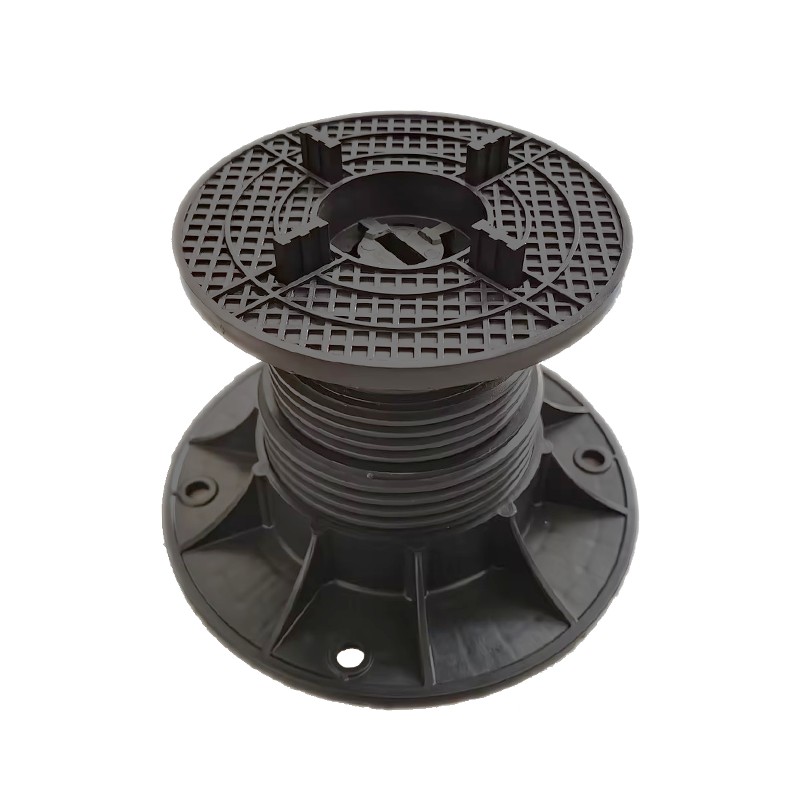

TA-VM Series

TA-VM Series

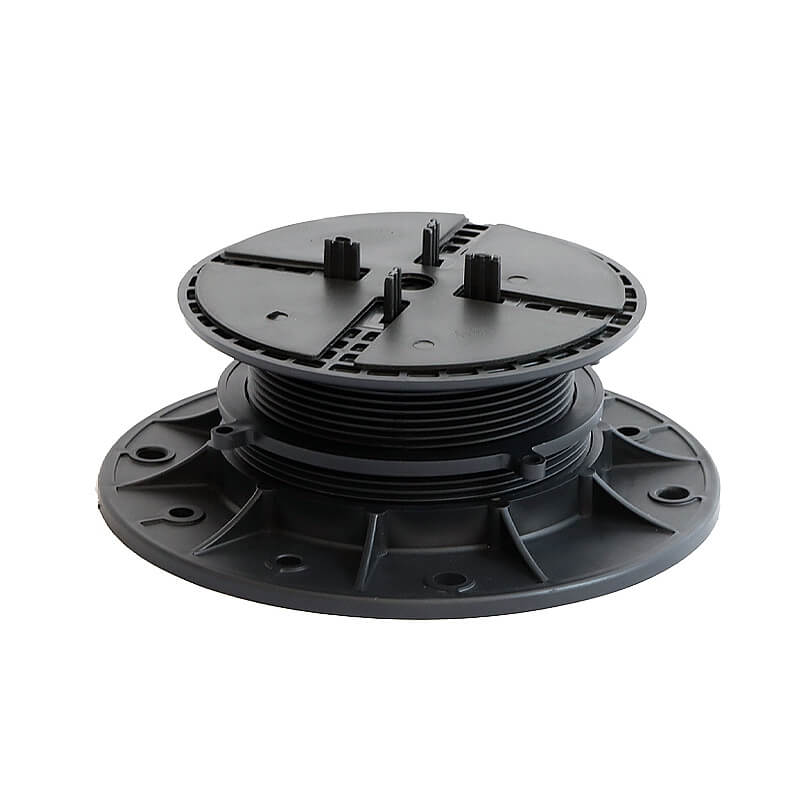

TA-U Series

TA-U Series

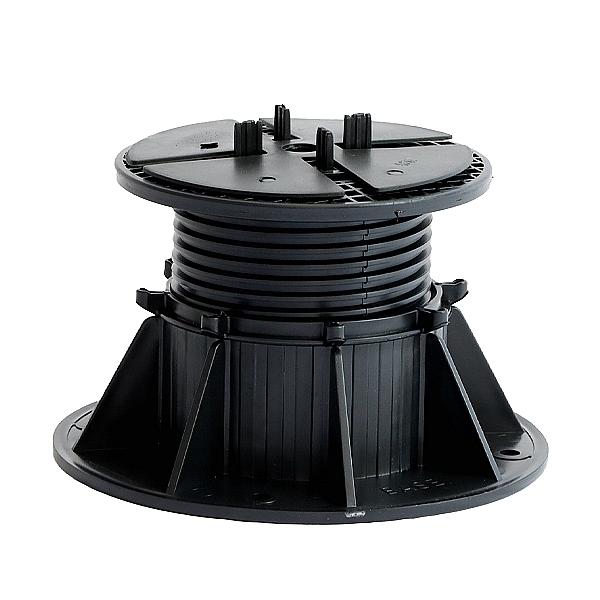

TA-R Series

TA-R Series

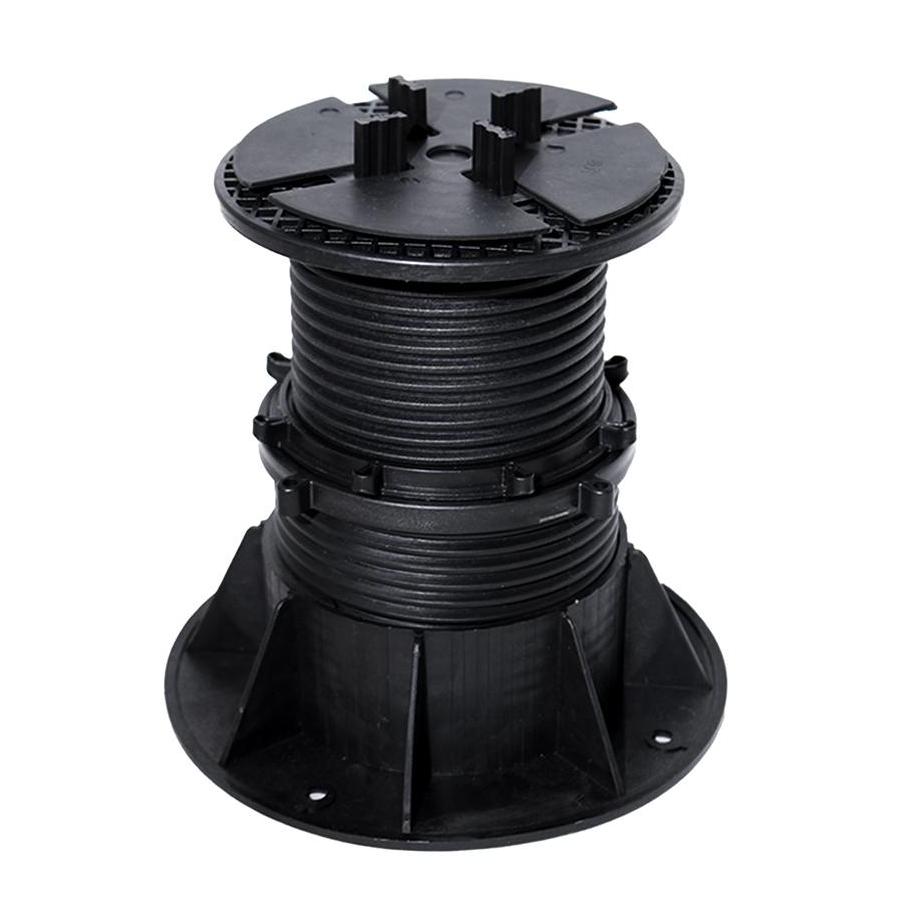

TA-NR Series

TA-NR Series

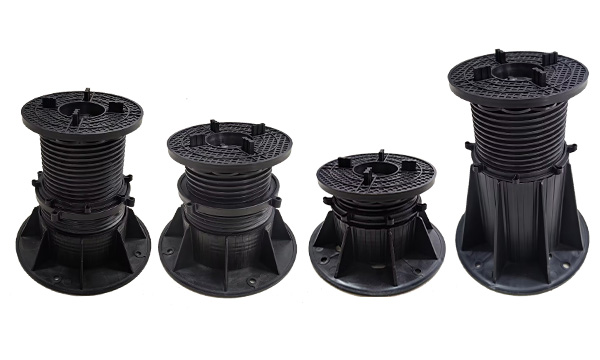

TA-VR Series

TA-VR Series

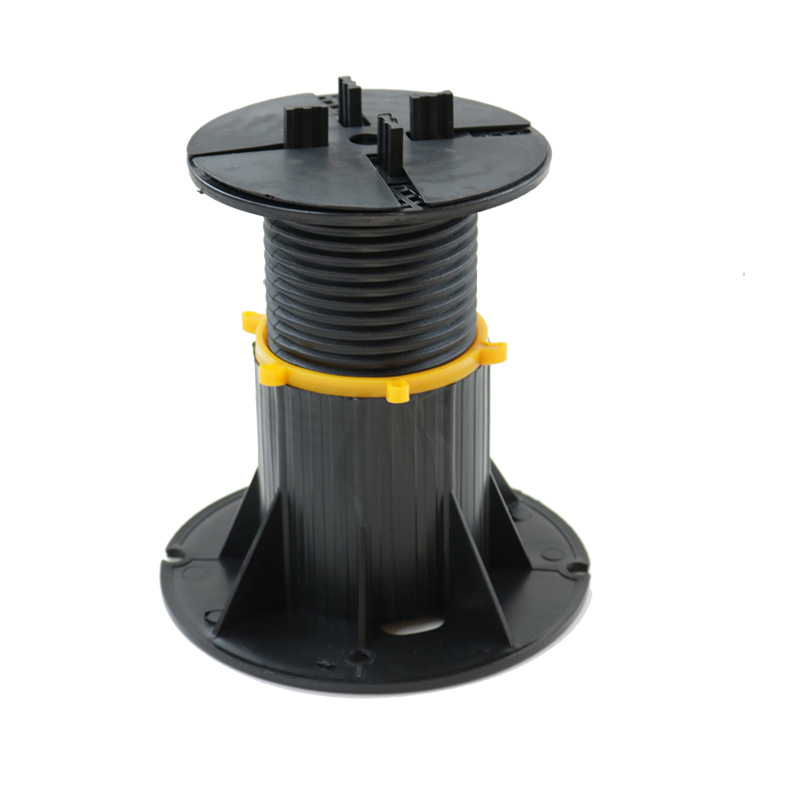

TA-A Series

TA-A Series

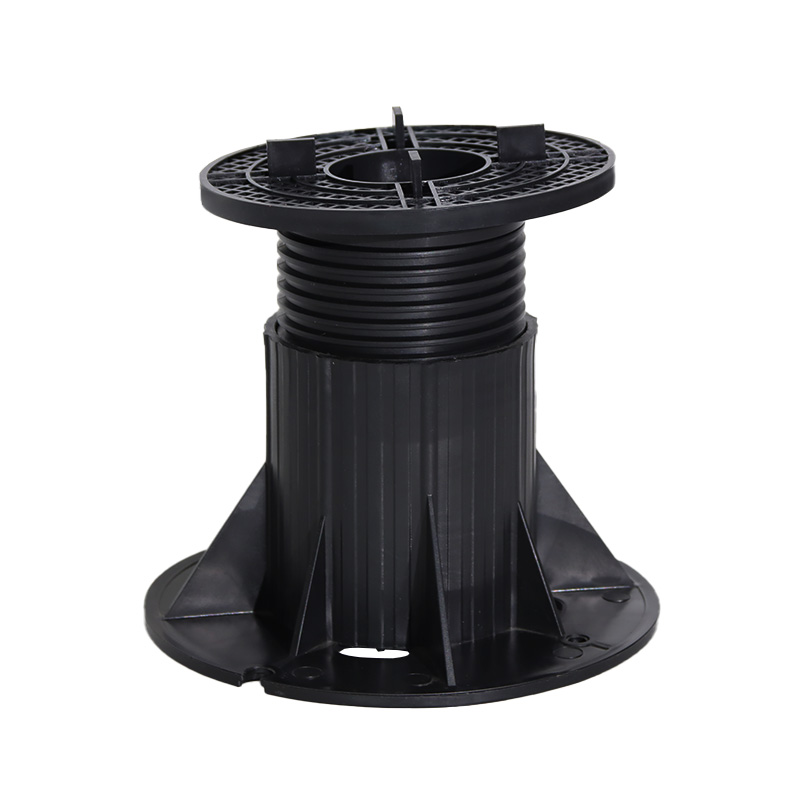

TA-VA Series

TA-VA Series

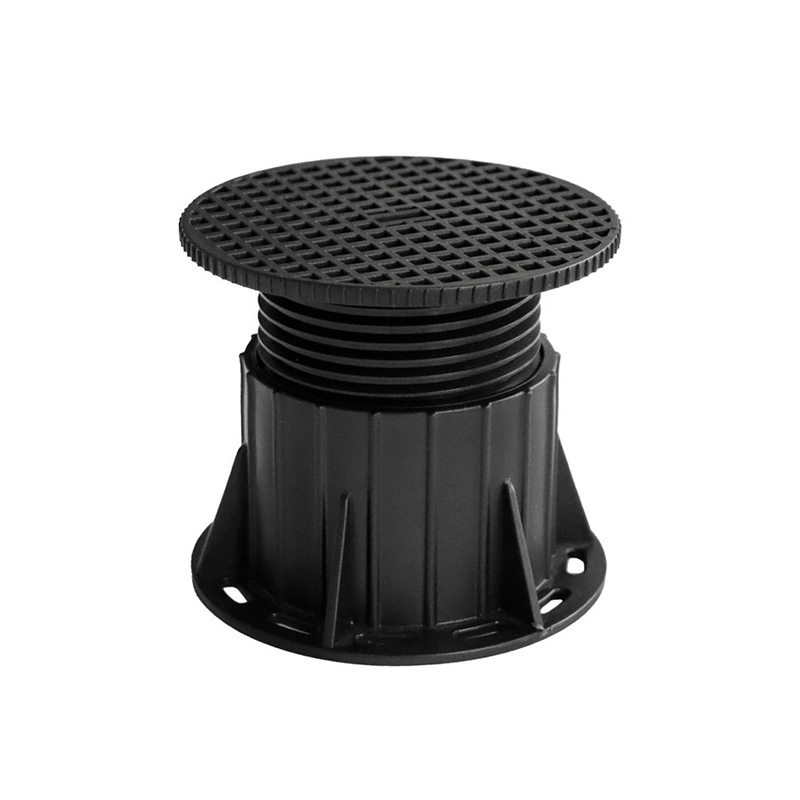

TA-S Series

TA-S Series

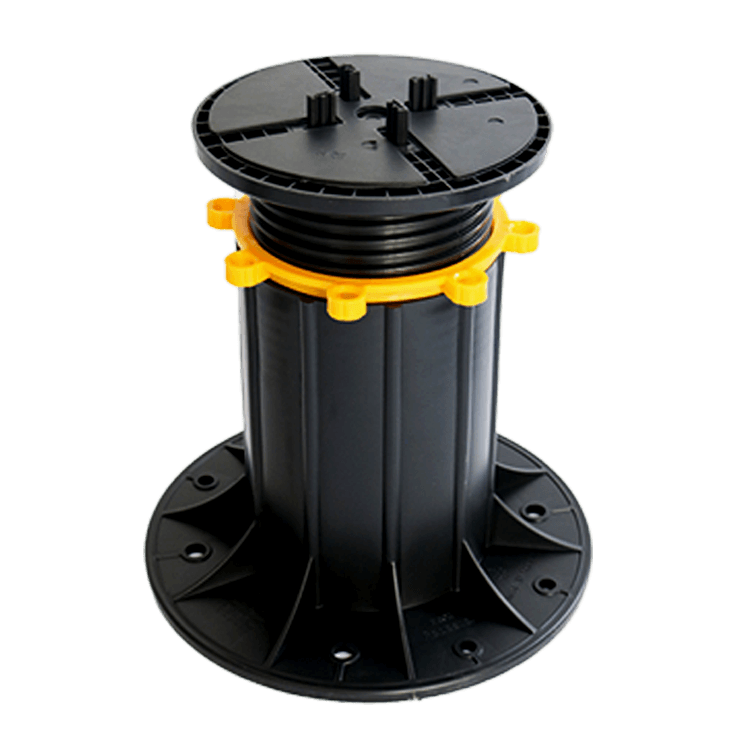

TA-T Series
