TA-NR Series Cost-Effective Pedestals
Maximum ROI • Freight Optimized

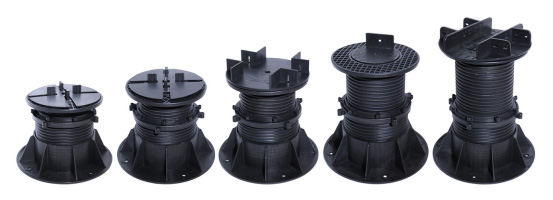

TA-NR Series Pedestals

Engineered for ultimate cost-effectiveness. The TA-NR series delivers an extended adjustment range per unit and significantly reduced packaging volume—saving you substantial ocean freight costs without compromising heavy-duty performance.

Save Sea Freight
TA-NR Series Specifications

Technical Specifications

  • ModelTA-NR Series (Cost-Effective Variant)
  • Height Range90 mm — 260 mm Extended Range per Unit
  • Bearing Weight1400 ~ 1800 KG
  • Head / Base Dia.150 mm / 200 mm
  • MaterialRecycled Modified PP
  • Key AdvantageReduced packaging volume cuts down international shipping costs while maintaining high structural integrity.

TA-NR Series Models

Wider adjustment range means fewer SKUs to stock. Select quantities and add to your Quote List.

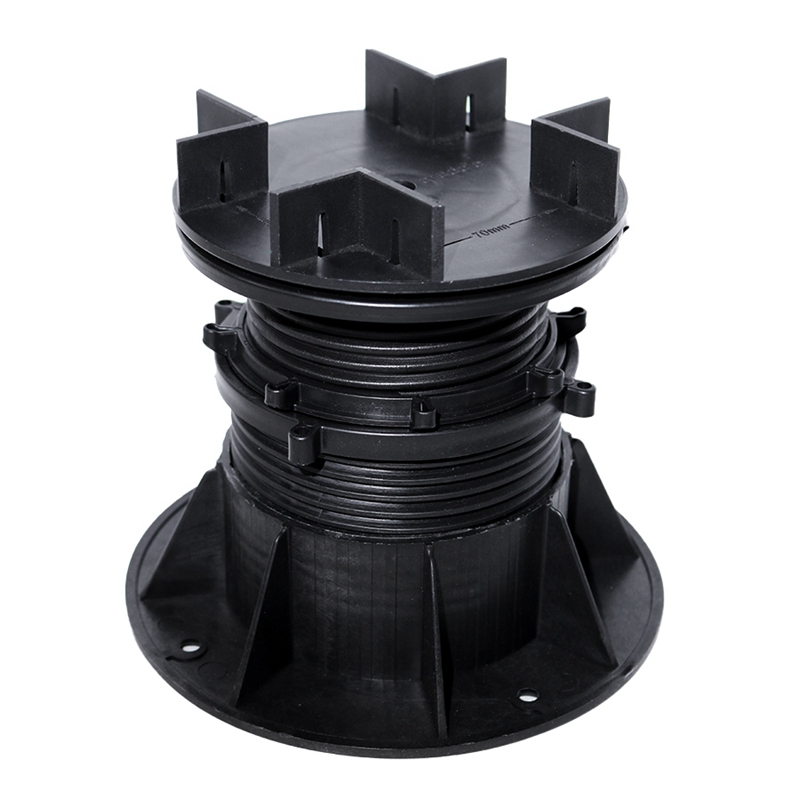

TA-NR0-01

TA-NR0-01

90-140mm
Est. Qty

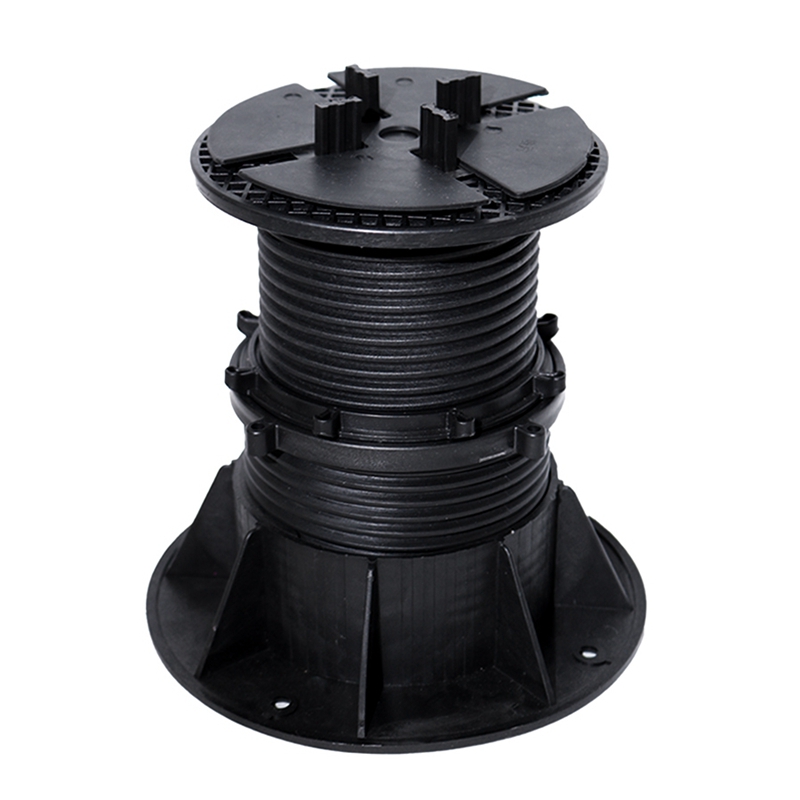

TA-NR0-02

TA-NR0-02

90-160mm
Est. Qty
TA-NR0-03

TA-NR0-03

100-180mm
Est. Qty

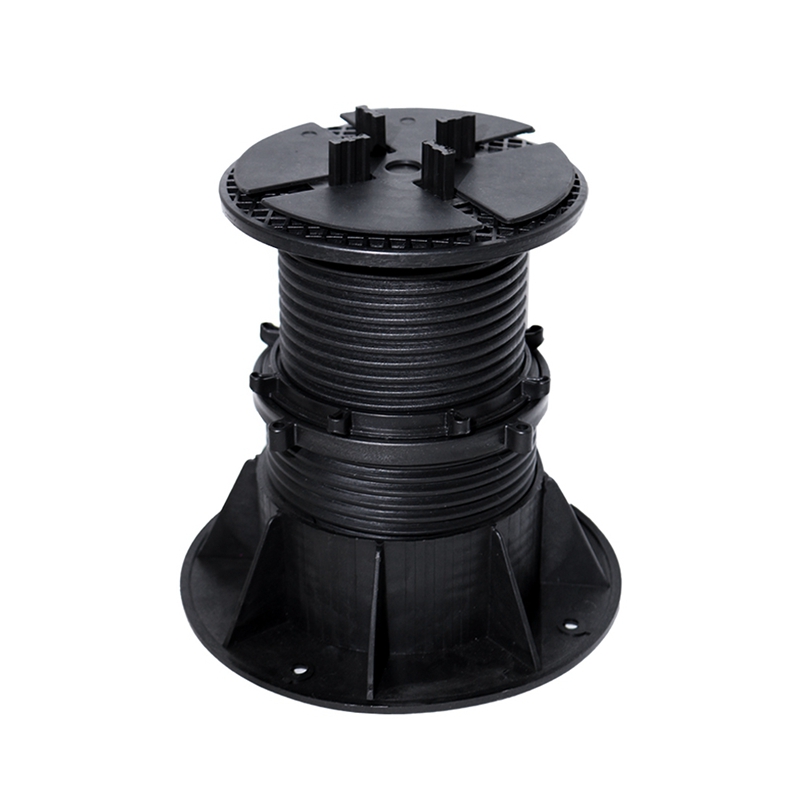

TA-NR0-04

TA-NR0-04

130-210mm
Est. Qty

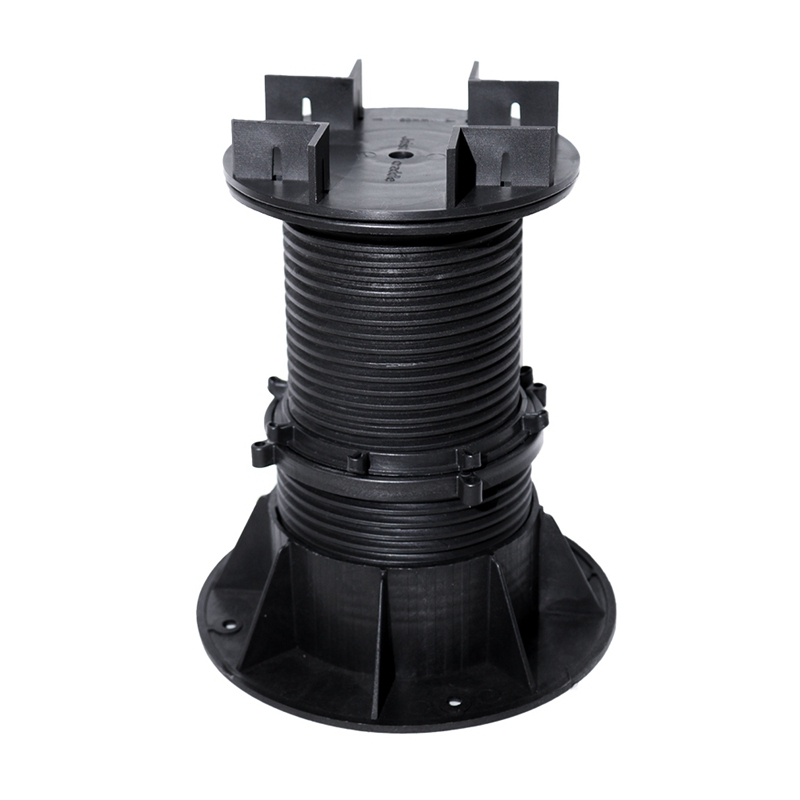

TA-NR0-05

TA-NR0-05

180-260mm
Est. Qty

Need even higher elevation limits?

Explore the full range TA-R Series (Up to 1360mm)

View TA-R Master Series

Pedestal Components

A wide range of accessories to meet diverse project needs in various scenarios, whether for flooring, paving, or landscaping.

Joist Cradle
Joist Cradle

Mainly used for the connection and fixation of wooden floor joists and aluminum alloy joists. Optional sizes: 30-80mm, 40mm, 60mm.

Est. Qty
Spacer Tabs
Spacer Tabs

Leaves seams on the stone to allow quick drainage on the stone surface. Available sizes: 2mm, 3mm, 4mm, 5mm, 8mm, 10mm.

Est. Qty
Rubber Shim
Rubber Shim

Thickness 1.5mm. Increases friction between stone and supporter, adjusts uneven thickness, and reduces noise.

Est. Qty
Base Rubber Pad
Base Rubber Pad

Thickness 4.2mm, diameter 210mm. Placed on the bottom of the supporter to prevent sliding, reduce vibration and noise.

Est. Qty
Slope Corrector
Slope Corrector

Suitable for a base diameter of 200mm, the slope can be adjusted from 0% to 5% by turning the slope plate.

Est. Qty
Vertical Closure Clips
Vertical Closure Clips

Stainless steel clips placed at top/bottom. Effectively prevents sliding caused by natural wind or human factors.

Est. Qty
Stainless Perimeter Spacer
Stainless Perimeter Spacer

Engineered to create space between a raised floor and the walls of a building. Absorbs shock and prevents damage.

Est. Qty
Adjustment Key
Adjustment Key

Made of iron, used for effortlessly adjusting the height of TA-V self-leveling pedestal after installation.

Est. Qty
Metal Tile Spacers
Metal Tile Spacers

Heavy-duty metal spacer tabs. Thickness: 4mm.

Est. Qty

Installation & Load Testing

Calculate Pedestals for Your Project

From surface area measurements to spacing recommendations, ensure a flawless and efficient installation using our online calculator.

Online Pedestal Calculator
