Trench Drain & Cover Systems
Heavy-duty HDPE trench channels paired with galvanized steel, stainless steel, and polymer grates. Engineered to handle EN1433 Load Classes from A15 pedestrian to F900 airport traffic.
Quick Order Matrix
Select your required channel dimensions, grate materials, and load classes. Add them to your Quote List for instant factory-direct pricing.
Galvanized Steel Grates
HDPE channel bodies paired with hot-dipped galvanized steel slotted grates. Offers an excellent balance of strength and cost for commercial parking lots and driveways.
View Dimensions & Load Class| Model / SKU | Specs & Load Class | Est. Qty (Meters) | Action |
|---|---|---|---|
TA-Drain-G100 Width: 100mm Series | 1000L x 150W x 130H mm EN1433: B125 | ||
TA-Drain-G150 Width: 150mm Series | 1000L x 200W x 200H mm EN1433: C250 | ||
TA-Drain-G200 Width: 200mm Series | 1000L x 250W x 250H mm EN1433: C250 |
Stainless Steel Slot Drains
Features a discreet, narrow stainless steel slot opening. Designed for high-end plazas, pedestrian areas, and swimming pool perimeters where aesthetics are critical.
View Dimensions & Load Class| Model / SKU | Specs & Load Class | Est. Qty (Meters) | Action |
|---|---|---|---|
TA-Slot-SS100 Single Slot Hidden Grate | 1000L x 150W x 150H mm EN1433: A15 | ||
TA-Slot-SS150 Double Slot Hidden Grate | 1000L x 200W x 200H mm EN1433: B125 |

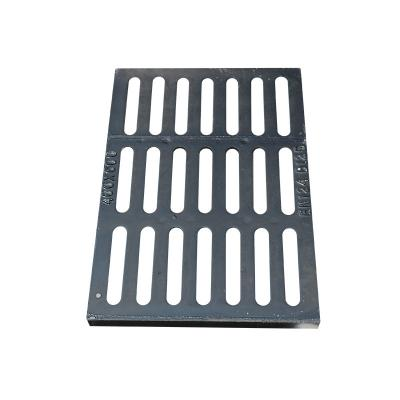

Ductile Iron Grates
Rugged ductile iron grates built to withstand massive dynamic loads. The ultimate choice for highways, loading docks, and heavy industrial facilities.
View Dimensions & Load Class| Model / SKU | Specs & Load Class | Est. Qty (Meters) | Action |
|---|---|---|---|
TA-Iron-D150 Width: 150mm Series | 1000L x 200W x 200H mm EN1433: D400 | ||
TA-Iron-D250 Width: 250mm Series | 1000L x 300W x 300H mm EN1433: E600 |

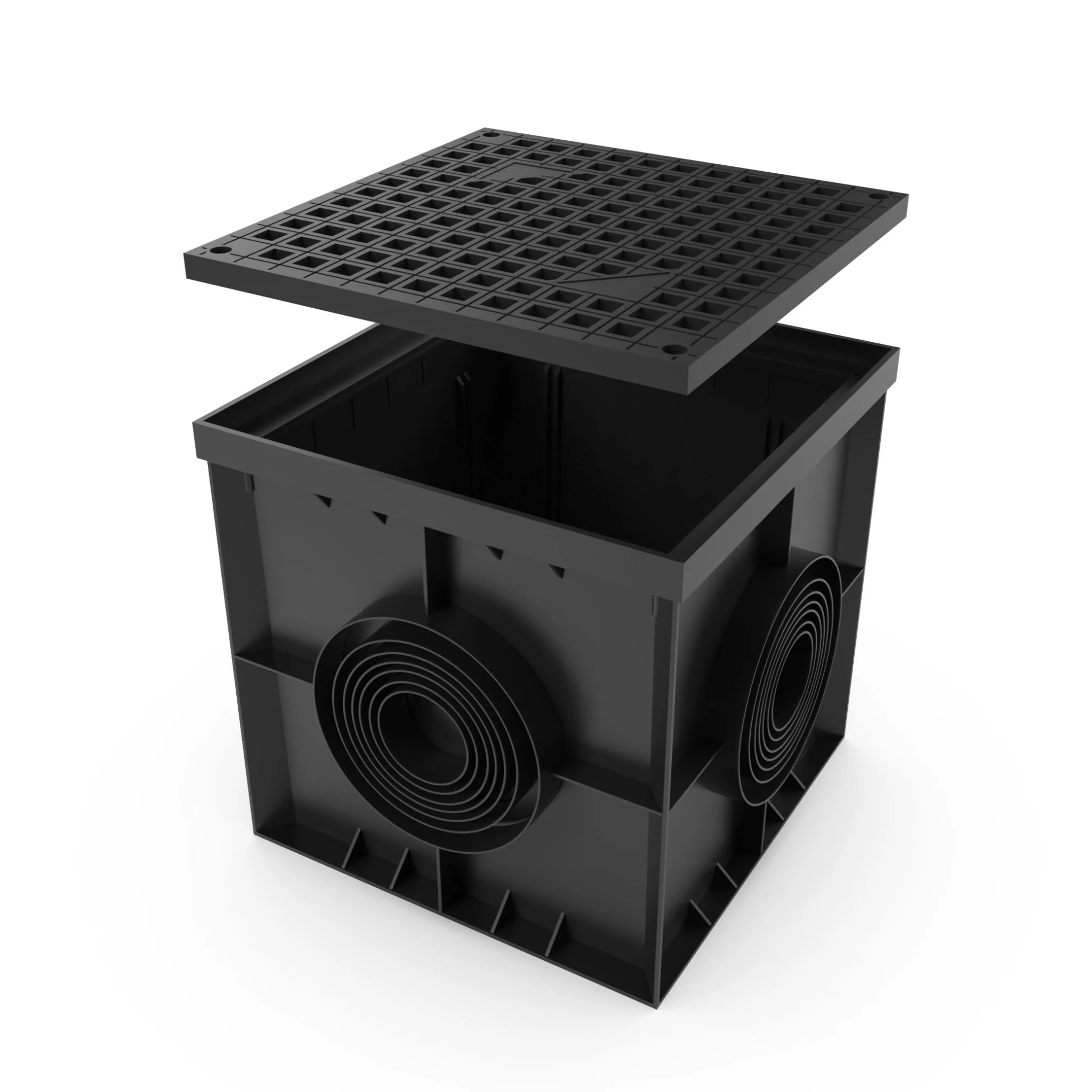

Catch Basins & Accessories
Inline catch basins with debris buckets, end caps, and PVC pipe connectors. Essential components for connecting the trench line to the main sewer system.
View Dimensions & Load Class| Model / SKU | Specs & Load Class | Est. Qty (Meters) | Action |
|---|---|---|---|
TA-Basin-B150 Catch Basin with Bucket | 500L x 200W x 400H mm | ||
TA-EndCap-150 Closed End Cap | Fits 150mm Channels |
High-Performance Drainage Engineering
Why civil engineers and commercial contractors choose Taurus trench drains.
HDPE Channel Body
Lightweight yet highly durable. Resistant to frost, UV, and a wide range of chemicals, ensuring a 50+ year lifespan.
A15 to F900 Classes
From domestic driveways (B125) to heavy airport docks (F900). We supply grates certified for any vehicular load.
U-Shaped Hydraulics
Smooth inner surface and U-shaped profile provide superior flow rates and self-cleaning performance compared to concrete.
Interlocking Assembly
Pre-assembled tongue and groove connections allow for fast, watertight installation, cutting labor costs by up to 40%.
Require a Custom Drainage Plan?
Send us your CAD drawings. Our engineers will provide a complete bill of materials including channels, grates, catch basins, and end caps with factory-direct OEM pricing.
